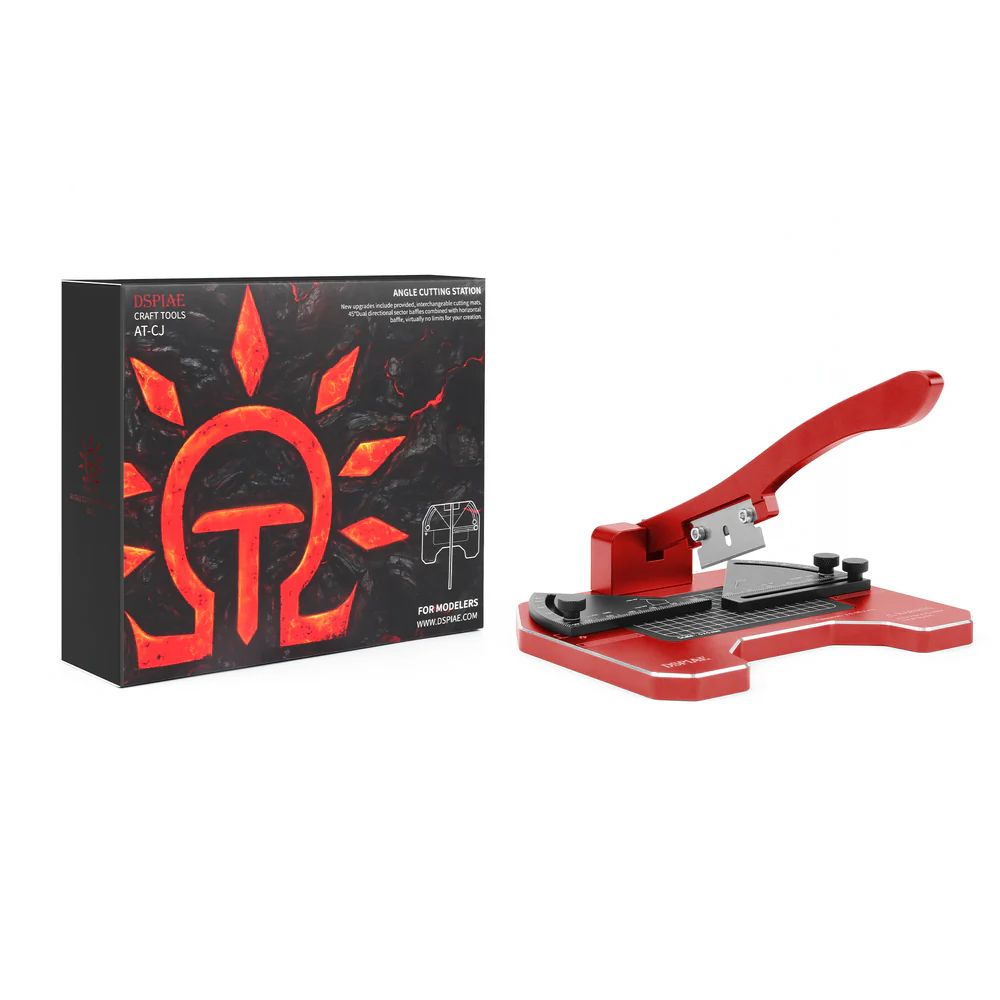

  • DSPIAE AT-CJ box and the red cutting station with its blade arm raised, on white

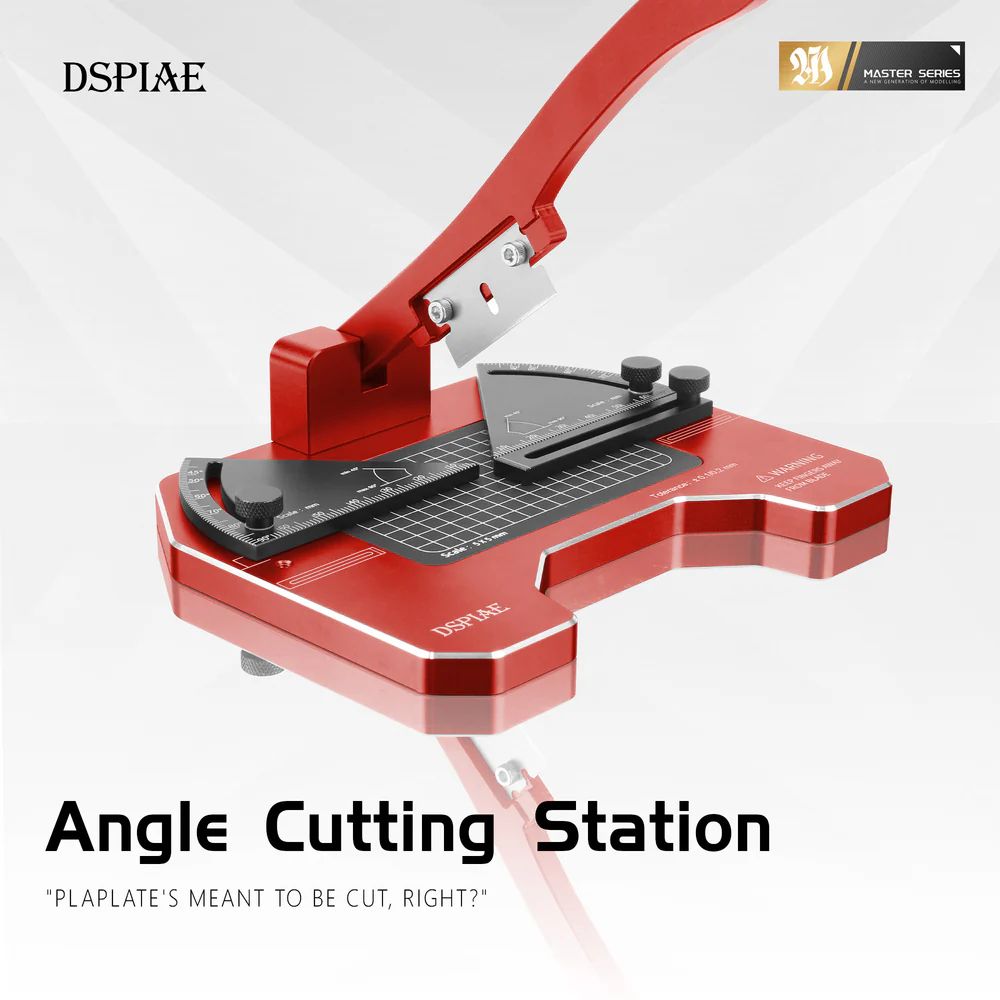

  • DSPIAE Master Series AT-CJ angle cutting station with the blade arm raised over the gridded mat

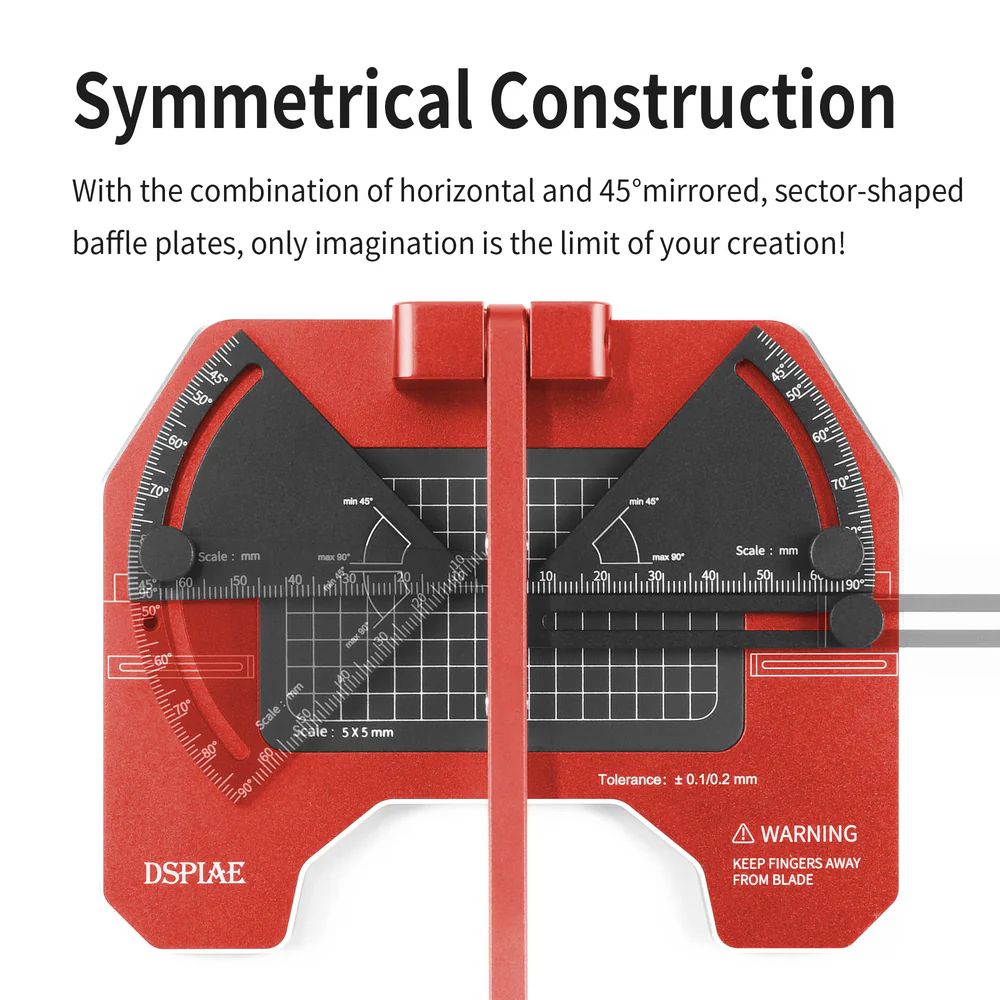

  • DSPIAE Symmetrical Construction panel: top view, mirrored 45° sector plates either side of the blade

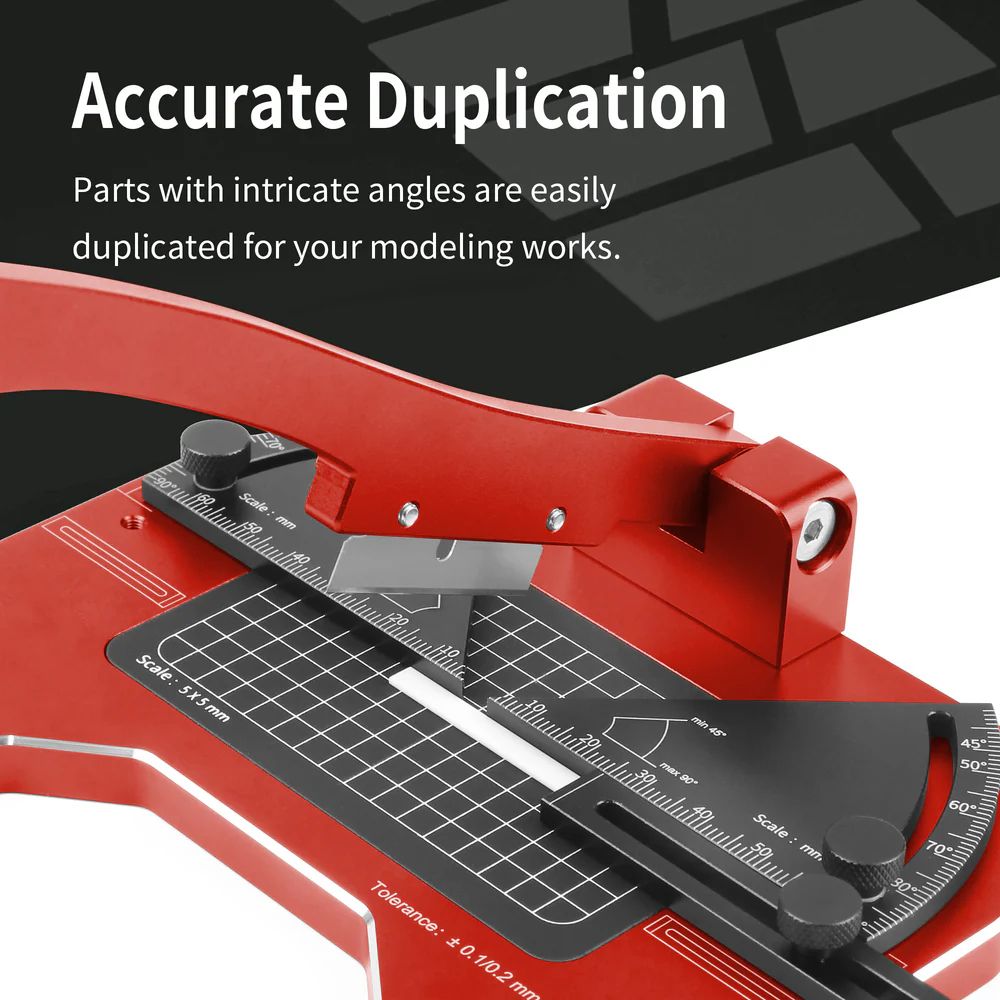

  • DSPIAE Accurate Duplication panel: a plastic strip on the grid under the blade, against the length stop

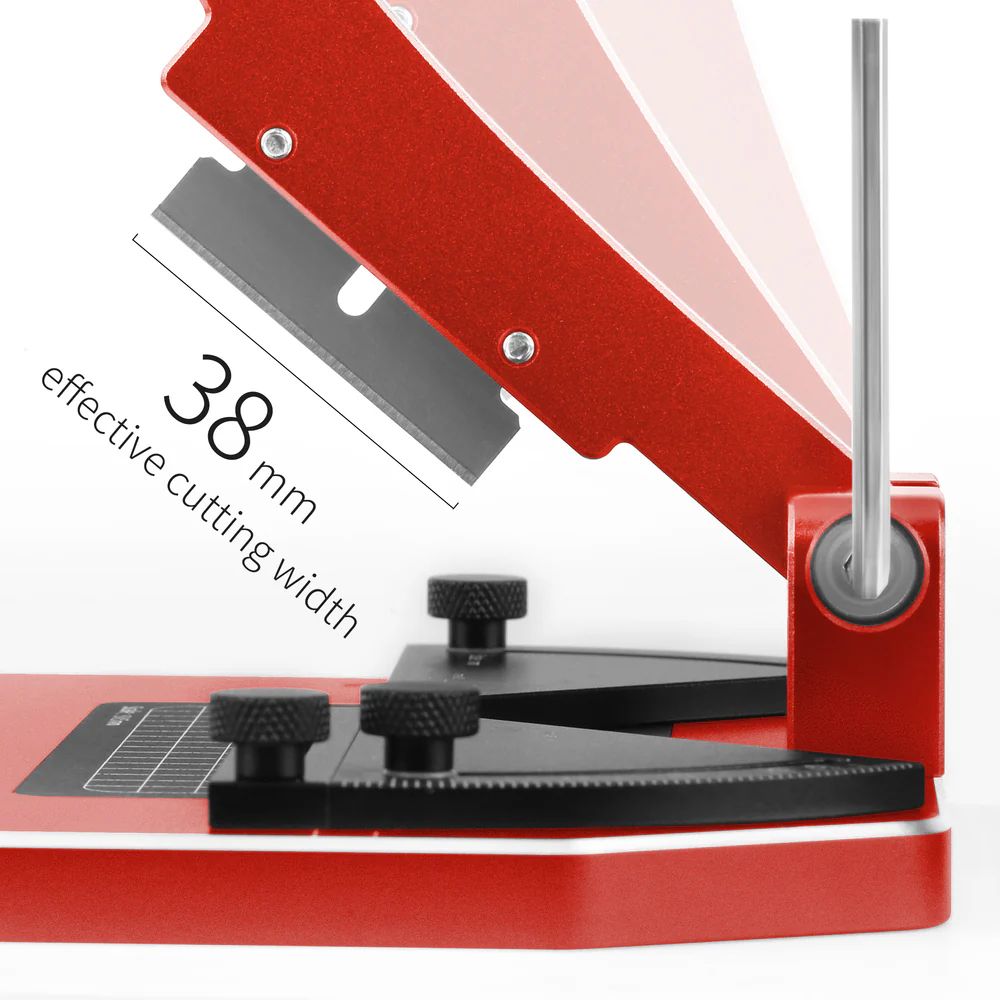

  • DSPIAE panel: 38 mm effective cutting width, with the handle damping screw at the pivot

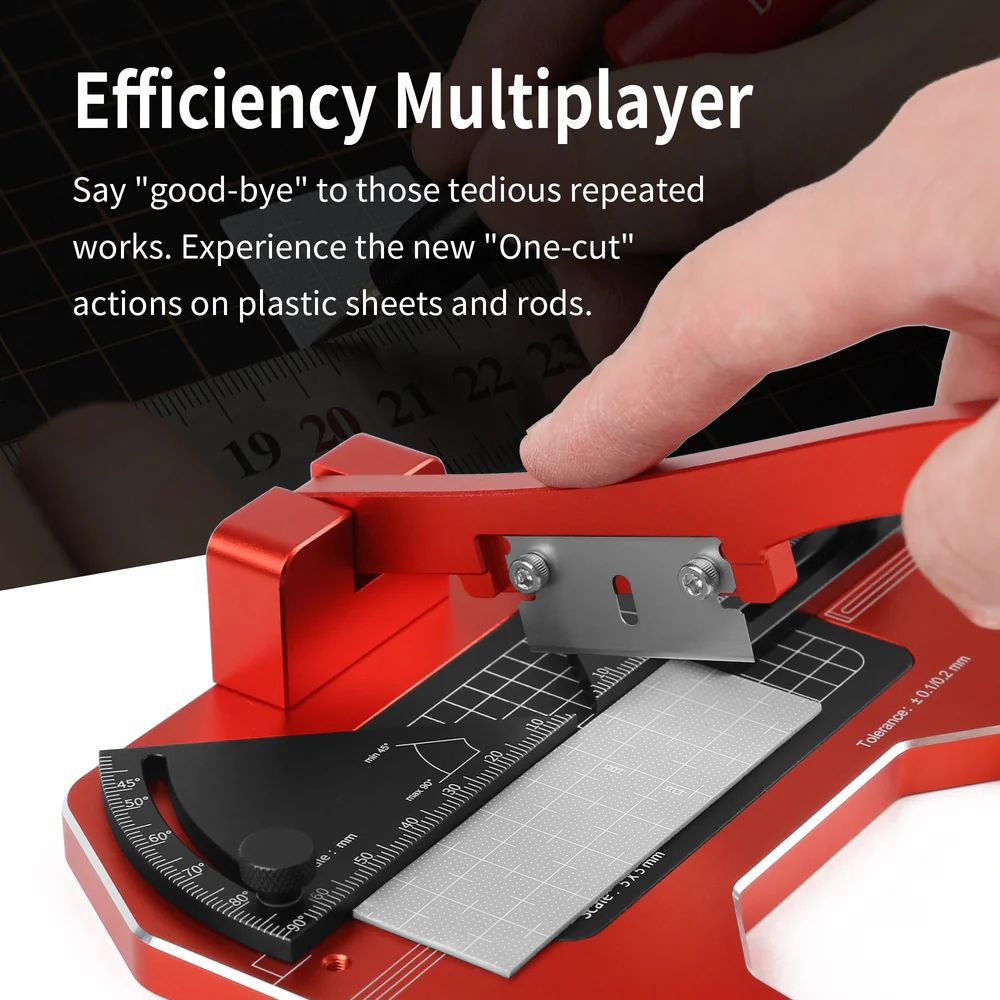

  • DSPIAE panel: one cut through a plastic sheet strip held on the AT-CJ grid

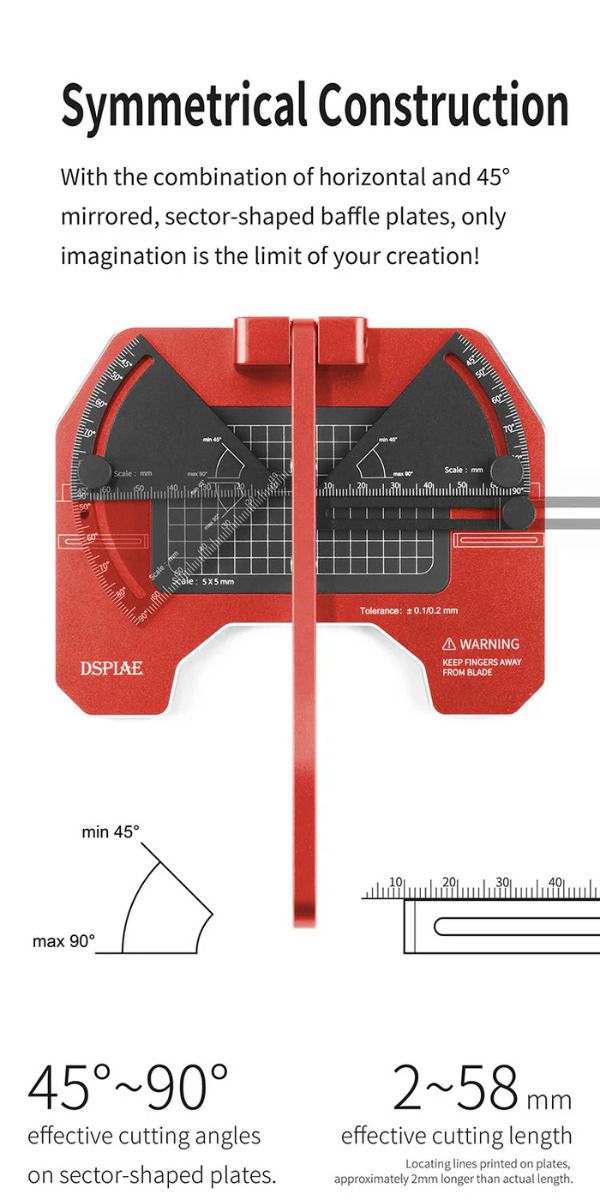

  • DSPIAE panel: cutting angles 45° to 90° on the sector plates and a 2-58 mm cutting length

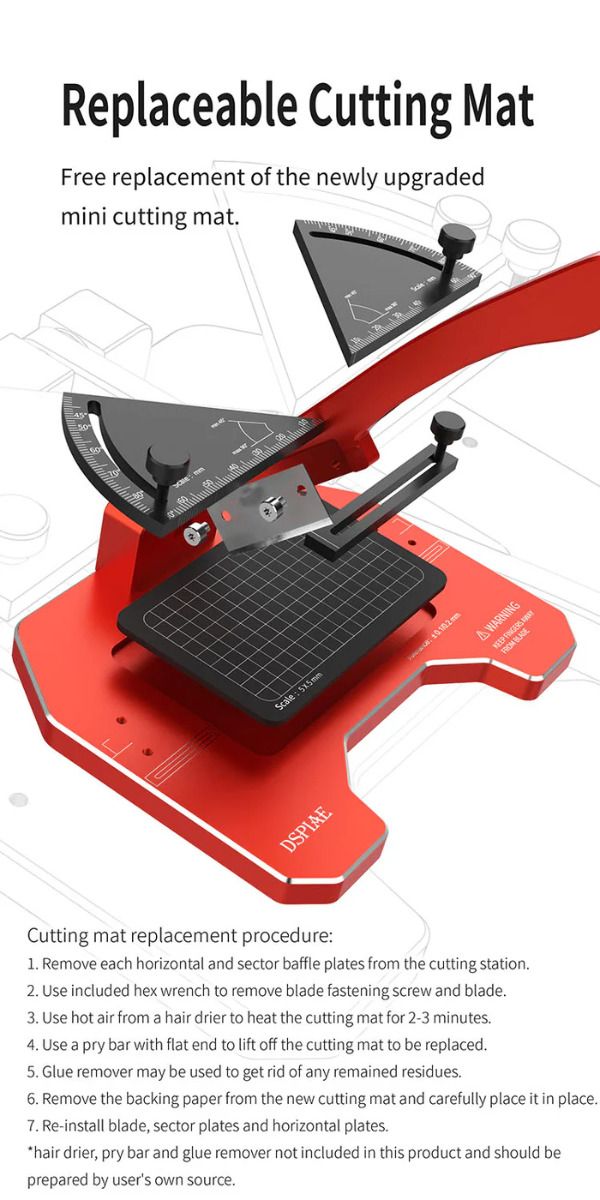

  • DSPIAE Replaceable Cutting Mat panel, with the seven-step mat replacement procedure

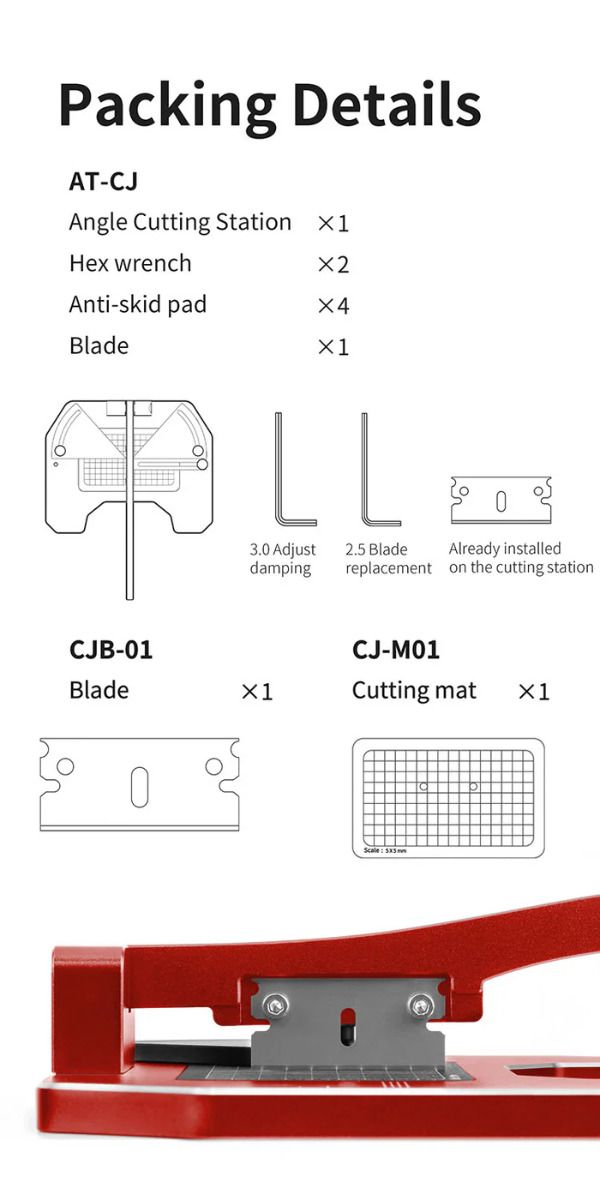

  • DSPIAE packing details: station, two hex wrenches, four anti-skid pads, fitted blade; spare blade and mat apart

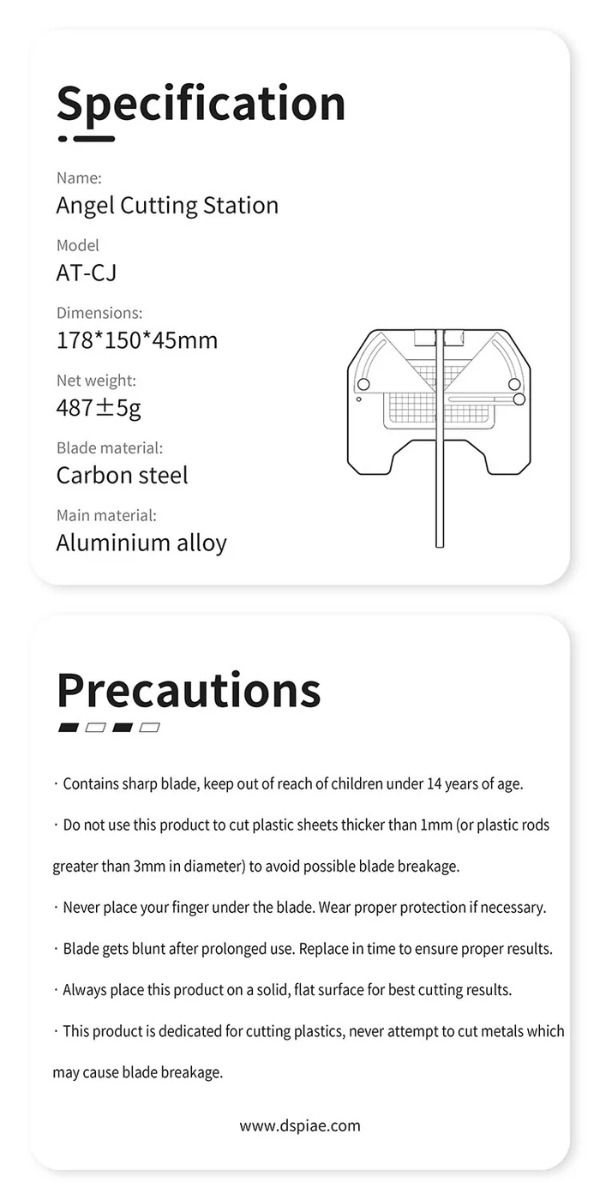

  • DSPIAE specification and precautions for the AT-CJ: 178 x 150 x 45 mm, 487 g, carbon steel blade
DSPIAE AT-CJ Multi-Angle Cutting Station
DSPIAE

DSPIAE AT-CJ Multi-Angle Cutting Station

$54.24
$54.24
Shipping calculated at checkout.

In stock · same-day dispatch before 3pm

  • Store rating 4.9/5 · 2208 reviews
  • UK tracked delivery

DWG · Product Information

PROJ: AT-CJ · SHEET 2 / 4

View · Overview

Product overview

The AT-CJ is DSPIAE's multi-angle cutting station for plastic sheet and rod. A hinged arm brings a carbon steel razor blade down onto a gridded mat, between two sector-shaped baffle plates mirrored either side of the blade. Set a plate between 45° and 90°, slide the length stop to 2–58 mm, and every strip comes off the same. It takes sheet up to 1 mm thick and rod up to 3 mm across; cutting metal may break the blade.

  • 45° to 90° angles; 2–58 mm length (printed lines read about 2 mm long)
  • 38 mm cutting width; blade imported from Germany, fitted
  • Hex wrenches 3.0 for handle damping and 2.5 for the blade
  • Spare blade CJB-01 and mat CJ-M01 sold separately
  • Aluminium base, 178 × 150 × 45 mm, 487 g, four anti-skid pads
  • Not for children under 14

Notes · Q & A

What is an angle cutting station for?

It cuts plastic strip, sheet and rod to a set angle and length, again and again. With the angle guide and length stop locked, every piece comes out the same, which is what brick courses, armour plates, frames and other repeated parts need.

What materials can I cut with it?

Styrene sheet, strip and rod and similar soft plastics, within the thickness the maker gives for your model. Do not cut metal, brass or stock thicker than the stated limit: it can chip or break the blade. The product description lists the limits.

How do I get repeatable lengths?

Set the length stop, make one test cut and measure it with calipers before cutting the batch, because printed scales can read slightly off the real cut. Push each piece firmly against the stop and the angle guide before the blade comes down.

When should I replace the blade?

When cuts start to crush or whiten the plastic, leave a burr or need extra force. A dull blade pushes the stock out of line, so accuracy goes first. Change it with the arm held down and keep your fingers clear of the edge.

Notes · Logistics

Shipping

Orders placed before 3pm (Mon–Fri) are dispatched the same day. UK delivery is by Royal Mail 24 Tracked. Free UK delivery on orders over £70. International delivery available via Royal Mail International Tracked or courier.

Returns

If you're not happy with your purchase, contact us within 30 days for a full refund or exchange. Items must be unused and in original packaging.

Table · Specification

Technical specifications

Product details
Brand
DSPIAE
Product code
AT-CJ
Type
Tools
Tool type
Angle cutting station
Shipping weight
700 g
Barcode
6977151541253
Dimensions & contents
Net weight
487 g
In the box
Hex wrench ×2, Anti-skid pad ×4, Blade ×1 (fitted)
Materials & finish
Material
Carbon steel
Usage & compatibility
Capacity
2–58 mm cutting length

Product

DSPIAE AT-CJ Multi-Angle Cutting Station

Code (proj)

AT-CJ

Ship. weight

700 g

Brand

DSPIAE
