Iwata Revolution BR Airbrush (IW-RV-BR) – 0.3 mm Gravity-Feed Dual Action Airbrush
✈️ Iwata Revolution BR – Precision Detail Airbrush
0.3mm nozzle for fine lines and detail work. Iwata quality at entry-level price. 10-year UK warranty.
✓ Authorised Iwata Dealer – Genuine product with full UK warranty and support
📦 What You Get
Dual-action, internal-mix, gravity-feed airbrush – the Revolution BR delivers Iwata precision at an accessible price. The 0.3mm nozzle sprays fine lines for detail work, while the ergonomic handle with cutaway grip keeps hands comfortable through long sessions. PTFE packings handle solvent-based paints safely.

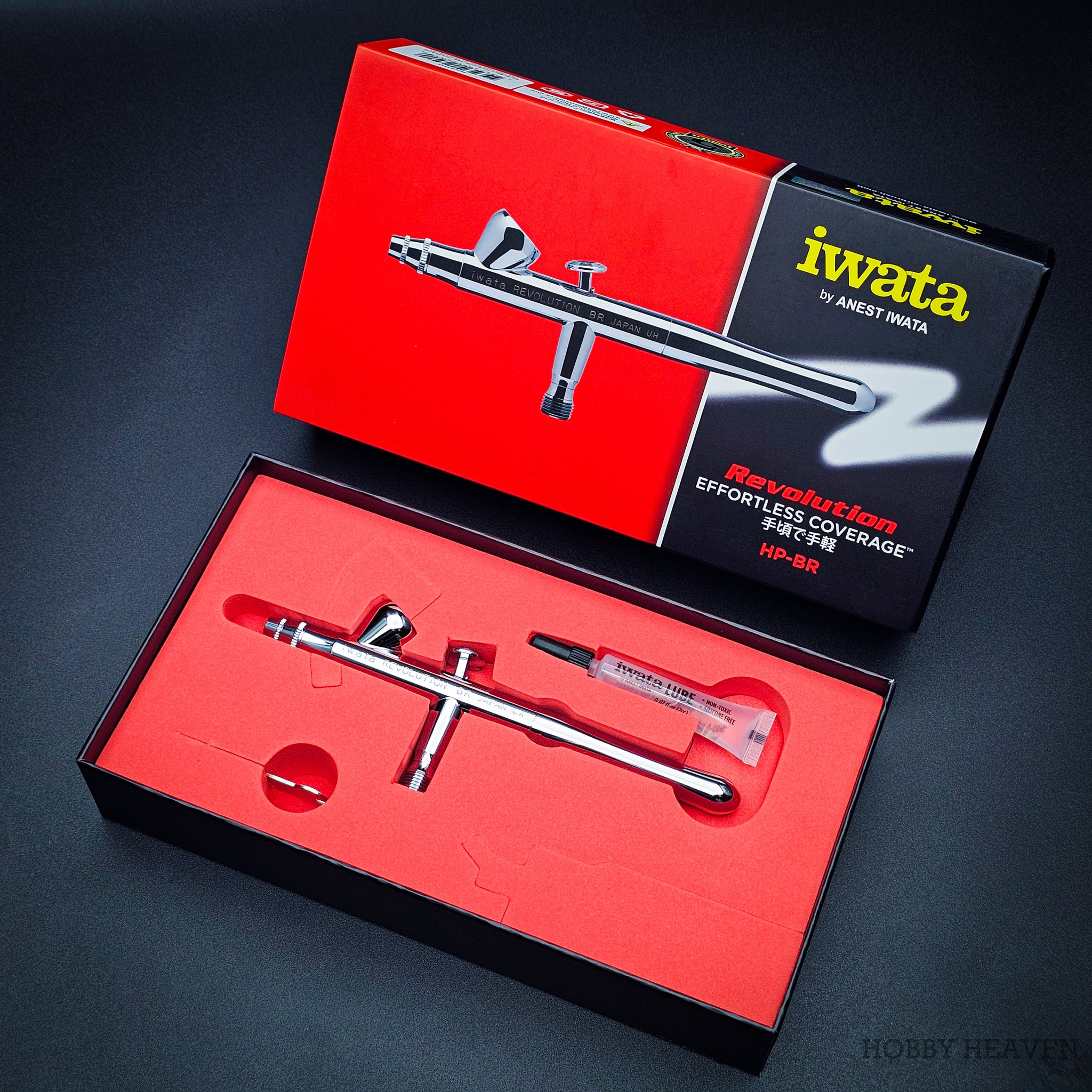

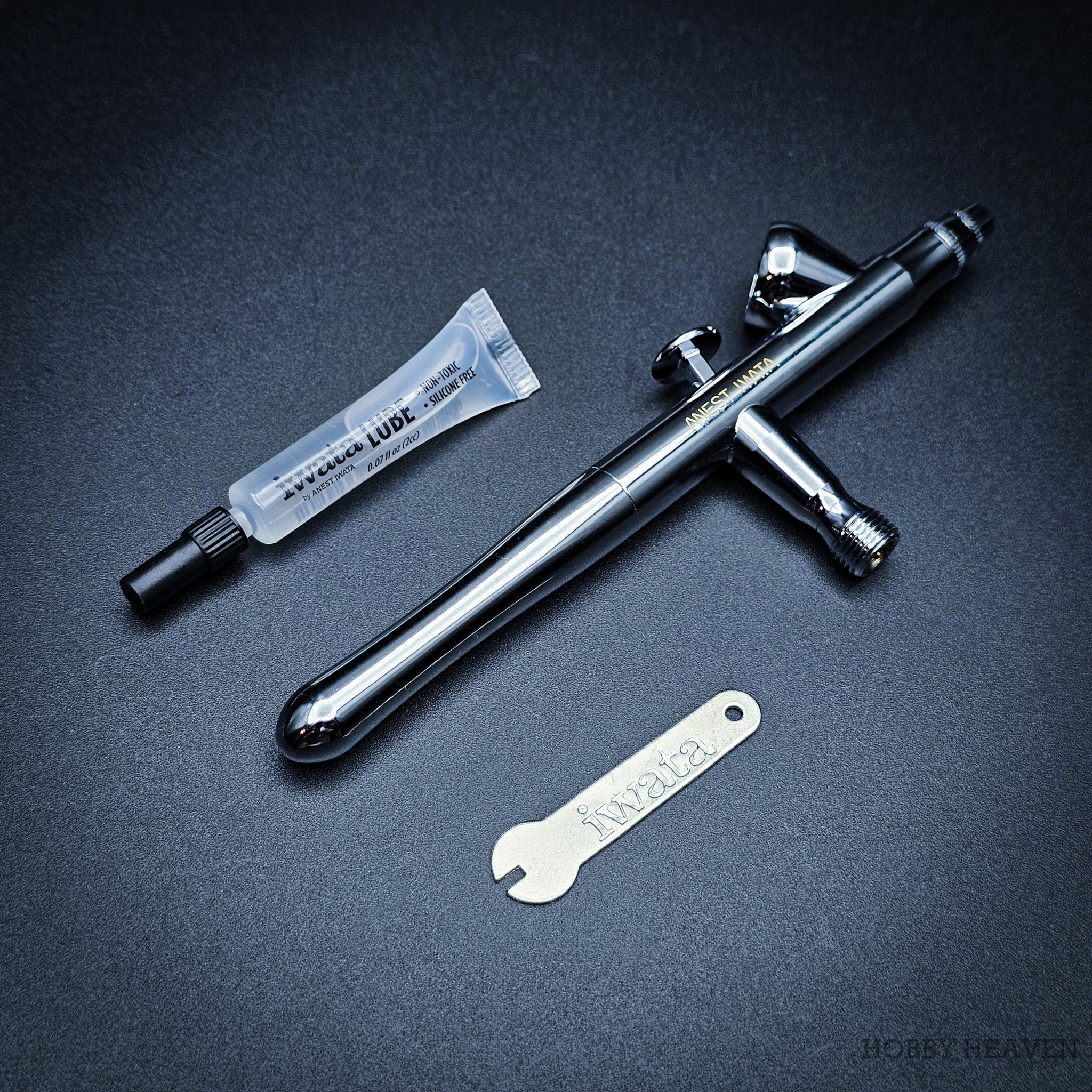

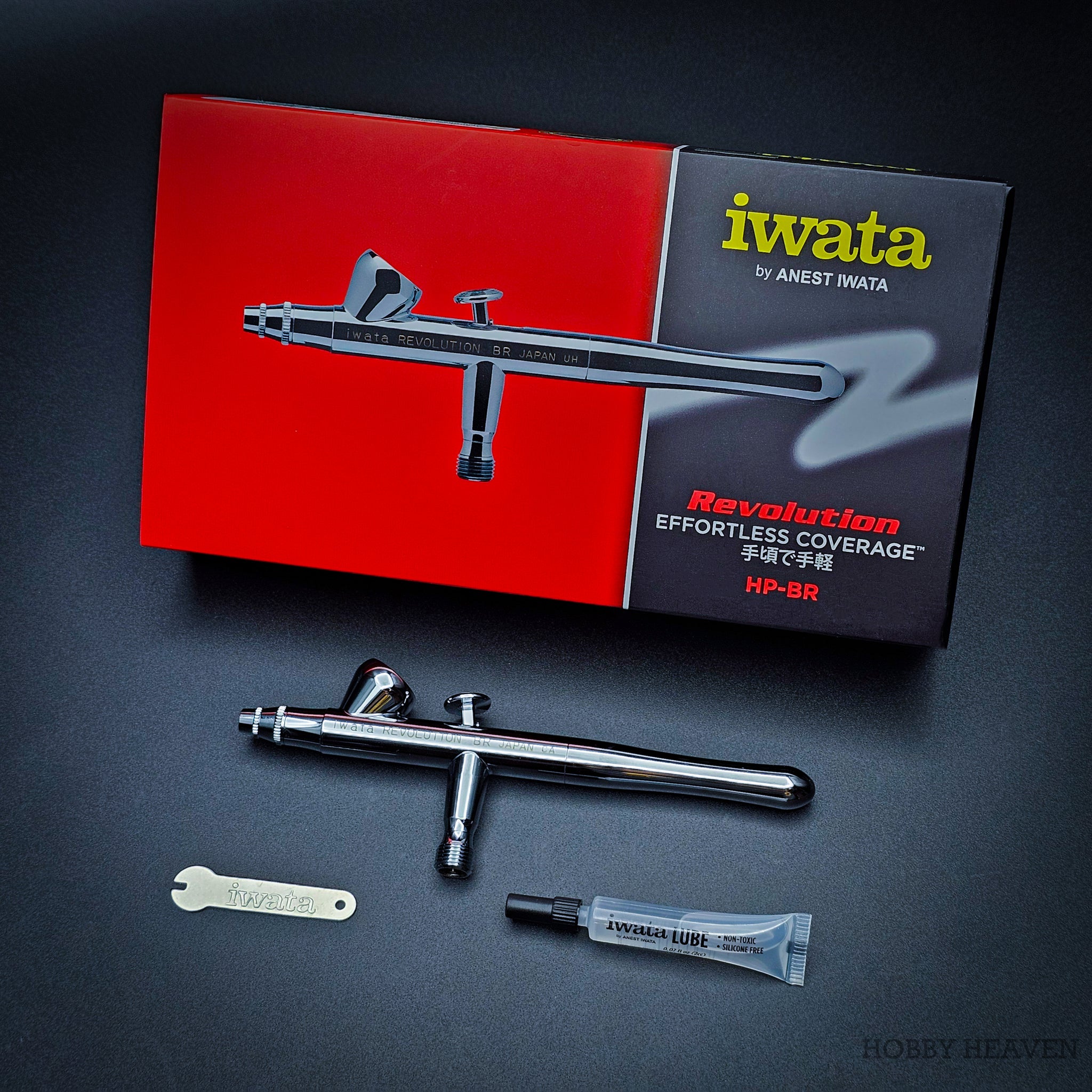

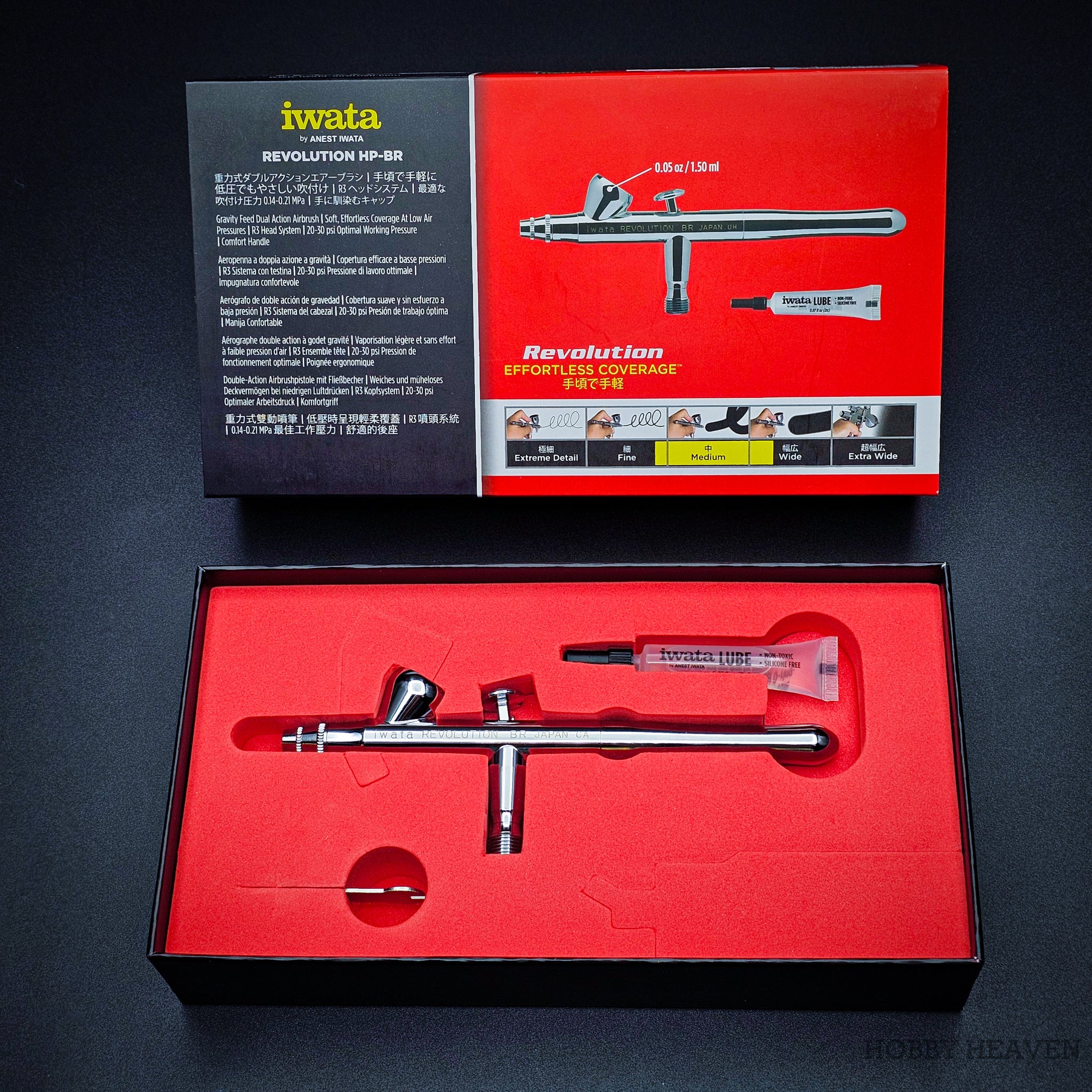

📋 Included in Box
🎯 Best For
Precise lines, gradients, small paint loads
Weathering, details, thin base coats
Smooth gradients, comfortable long sessions
Iwata quality, forgiving to learn on
📋 Specifications
| Model | IW-RV-BR |
| Action | Dual-action |
| Feed | Gravity (top cup) |
| Nozzle size | 0.3mm |
| Cup capacity | 1.5ml (0.05 oz) |
| Spray width | 0.3mm – 25mm |
| Optimal pressure | 20-30 PSI |
| Weight | 80g (0.08 kg) |
| Dimensions | 142 × 51 × 17mm |
| Nozzle type | Threaded (R3 head system) |
| Packings | PTFE (solvent resistant) |
| Warranty | 10 years (UK) |
📊 Revolution Series Comparison
| Model | Nozzle | Cup | Spray | Best For |
| BR ✓ | 0.3mm | 1.5ml | 0.3-25mm | Nail art, fine detail |
| CR | 0.5mm | 9ml | to 50mm | Models, base coats |
| M.A.R | Micro | 1.5ml | Ultra-fine | Tattoo, fine art |
💡 Need to spray primers or thicker paints? Consider the CR with larger 0.5mm nozzle.
💡 Quick Cleaning (5 min colour change)
- Empty cup, add cleaner (acrylic or solvent-based as needed)
- Pull trigger back and forth to flush through nozzle

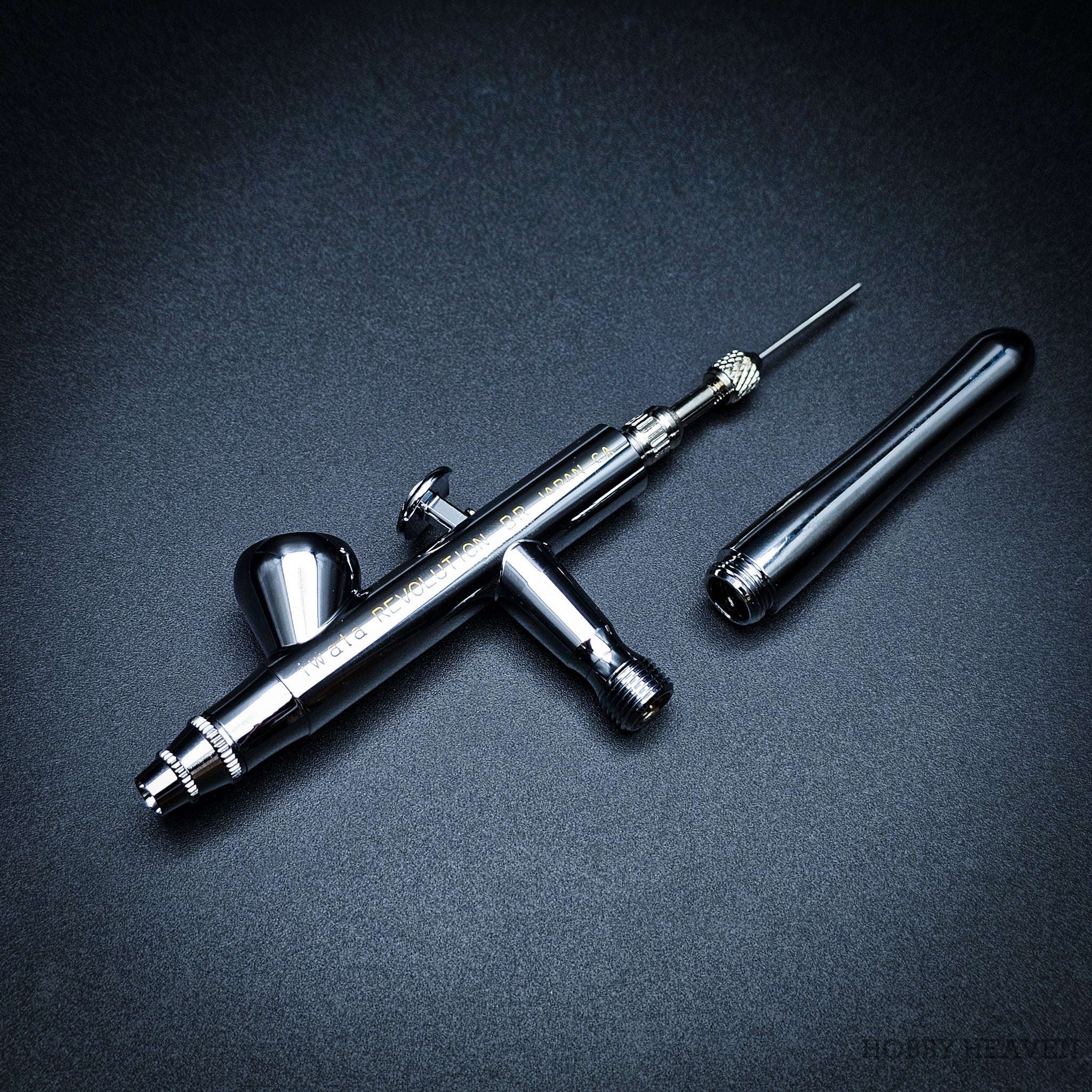

- Use spanner to remove nozzle cap when deep cleaning (be gentle with needle!)
- Apply Iwata Lube to packings, reassemble
- Store in case – never bend the needle
🔌 Compressor Requirements
Works with small hobby compressors (0.5-1 HP with tank). Minimum 20 PSI, optimal 20-30 PSI. Standard 1/8" BSP hose connection fits most compressors.
✅ Pros
- Iwata quality at entry-level price
- Excellent atomisation at low PSI
- 0.3mm precision for detail work
- PTFE packings (solvent safe)
- Comfortable cutaway grip
- 10-year UK warranty
⚠️ Keep in Mind
- Small 1.5ml cup – frequent refills
- 0.3mm struggles with thick primers
- Needs spanner for deep cleaning
- Requires compressor (not included)
