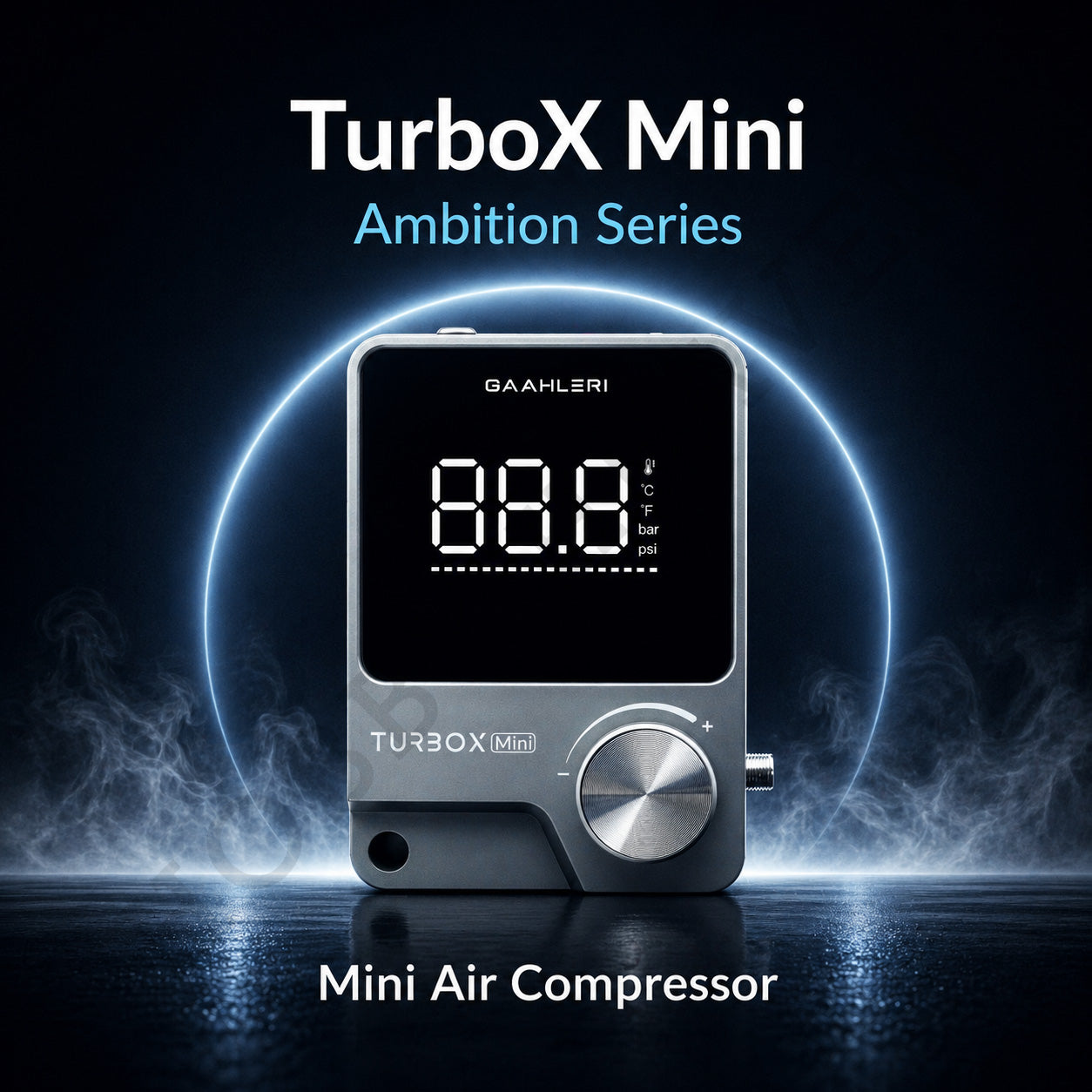

Gaahleri TurboX Mini air compressor lit in blue on a dark background
  • Gaahleri TurboX Mini air compressor lit in blue on a dark background

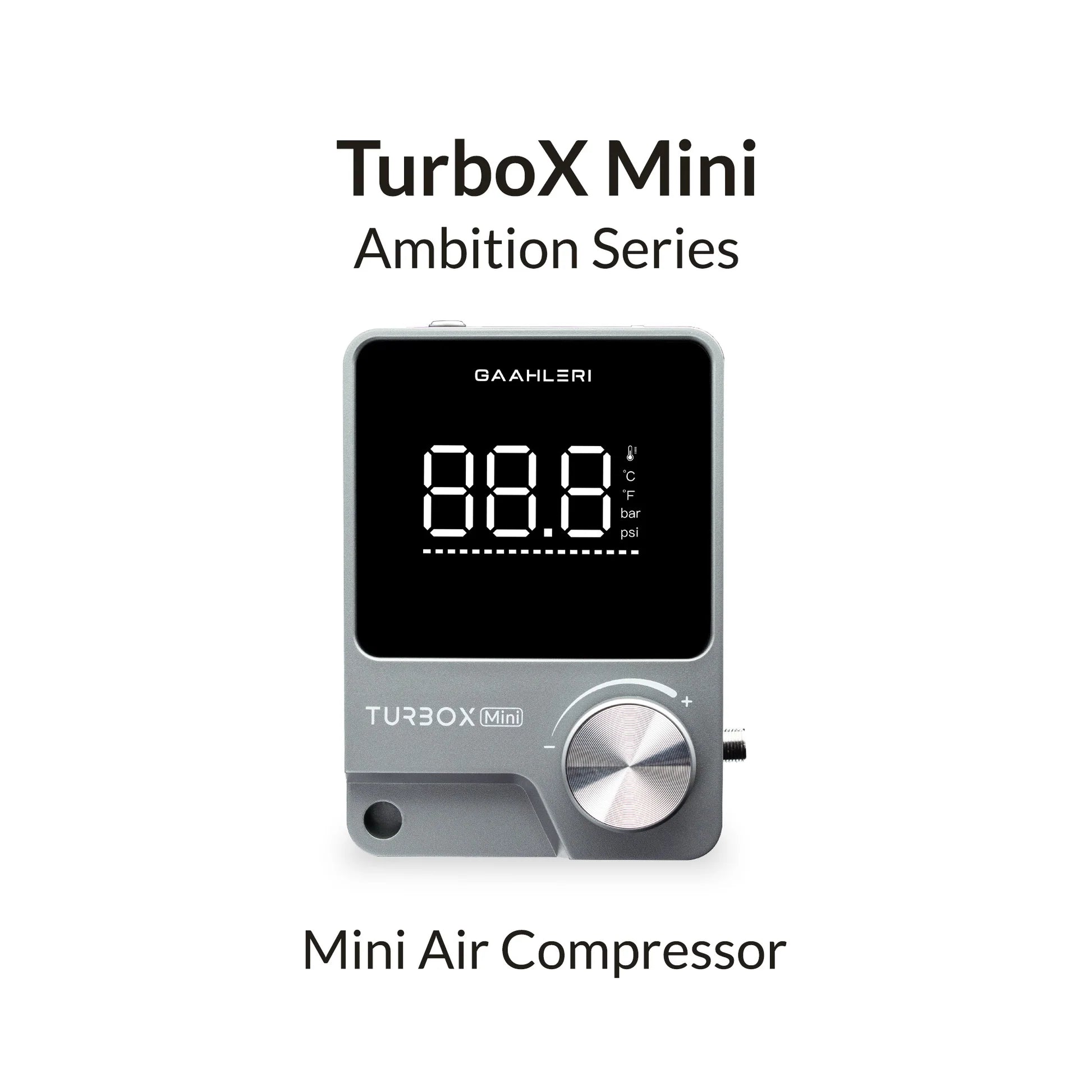

  • Gaahleri TurboX Mini Ambition Series compressor from the front, with its digital display and dial

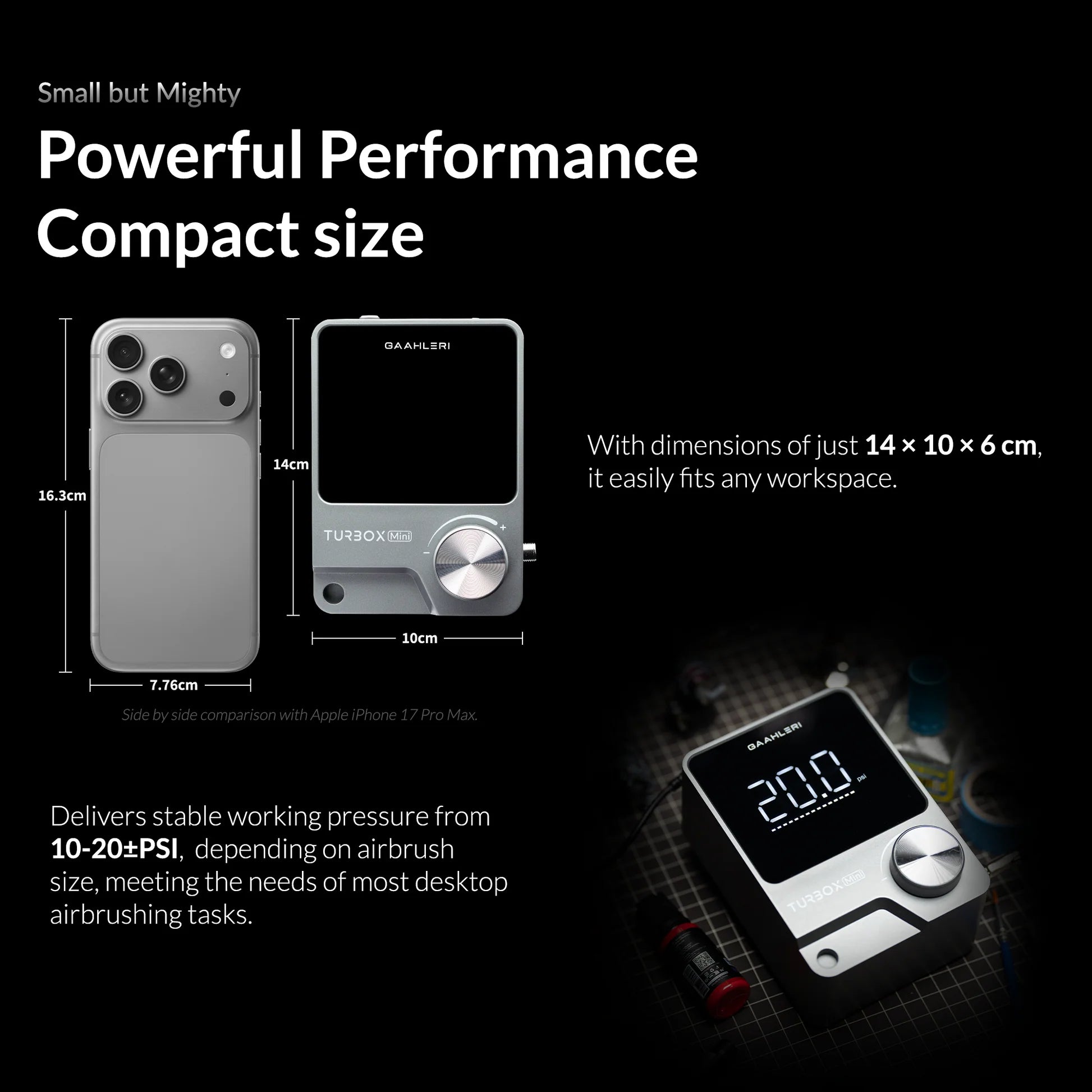

  • Gaahleri card: TurboX Mini beside a phone for scale, about 14 by 10 cm, 10-20 psi working pressure

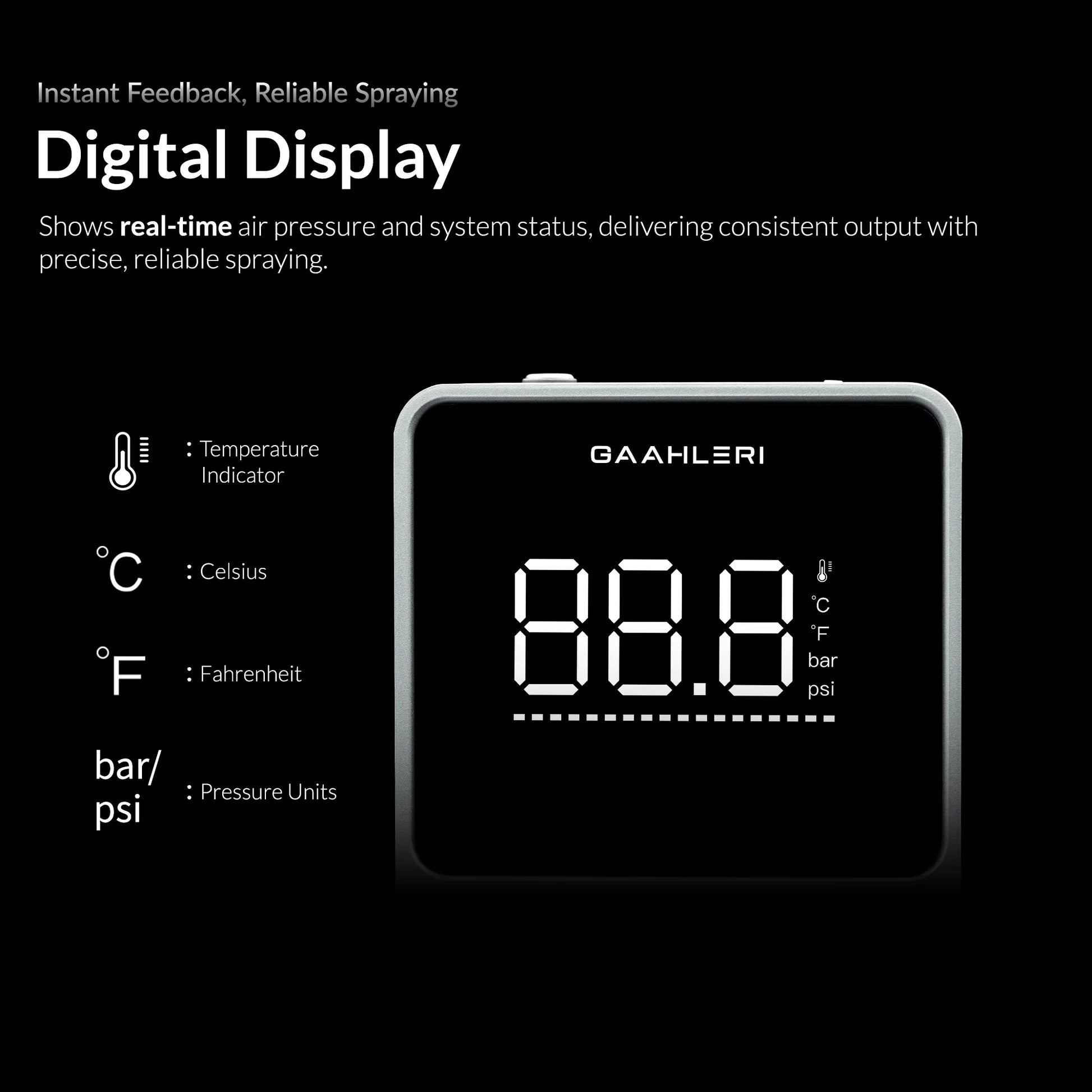

  • Gaahleri card: TurboX Mini display with temperature, Celsius, Fahrenheit and bar or psi indicators

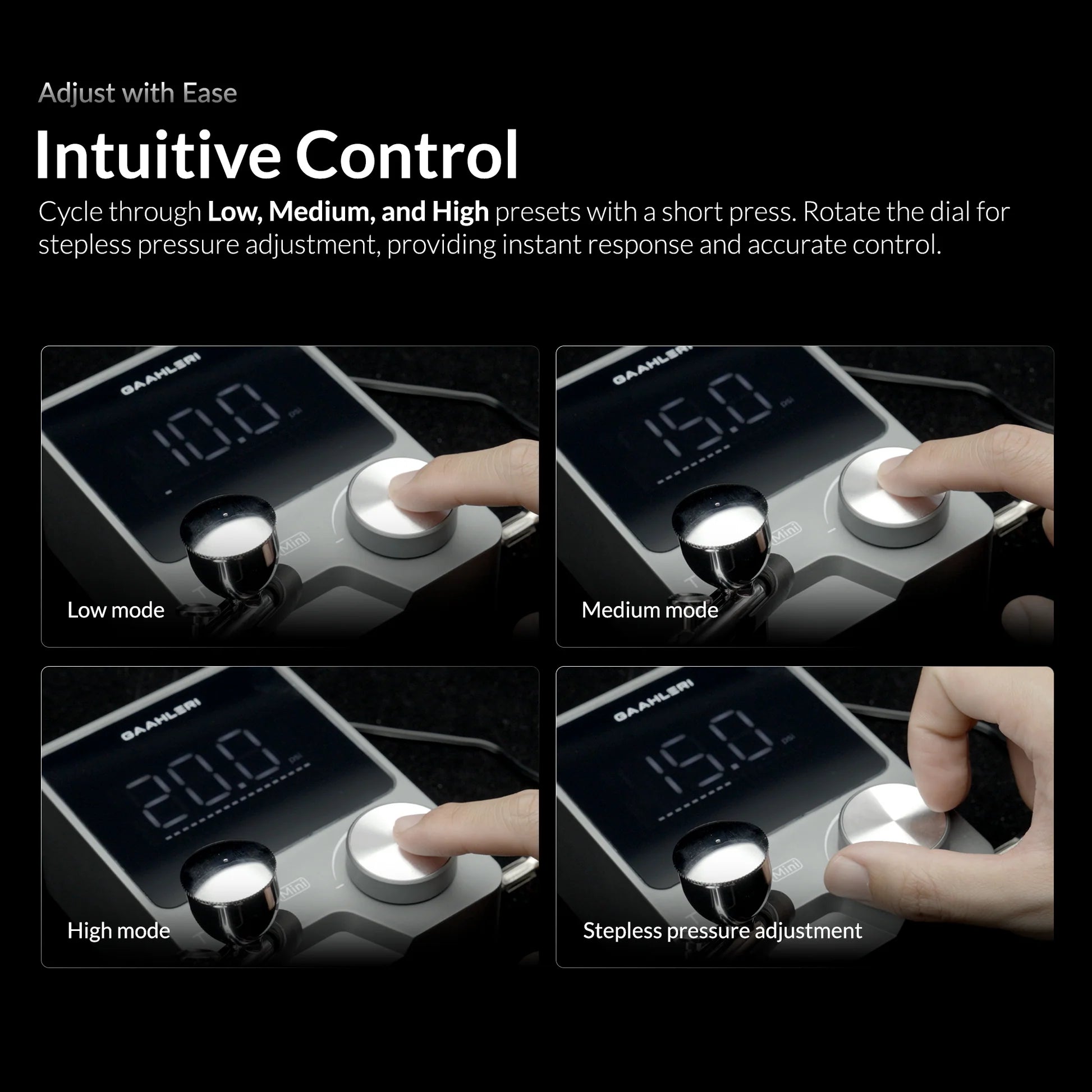

  • Gaahleri card: Low, Medium and High presets and stepless pressure control on the TurboX Mini dial

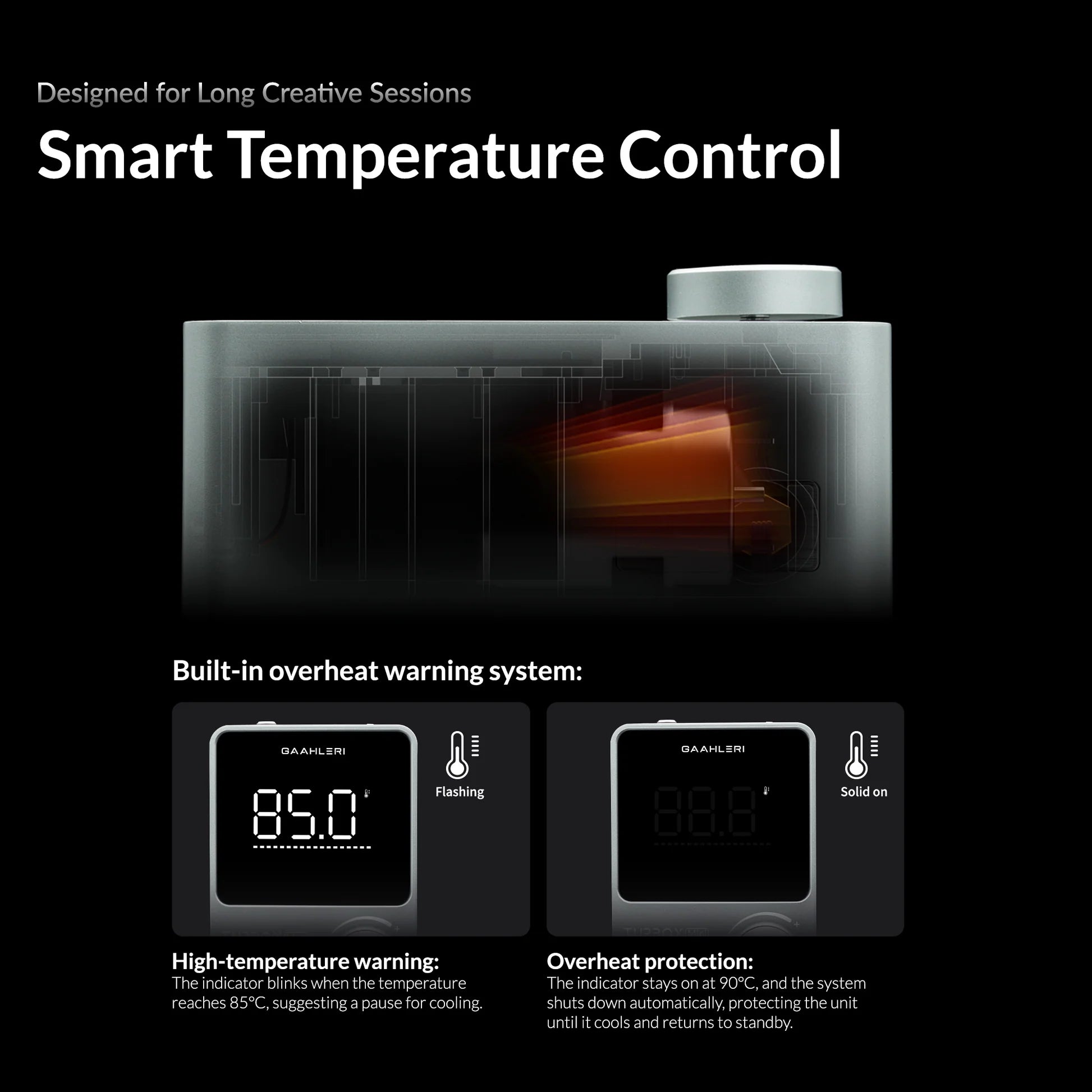

  • Gaahleri card: TurboX Mini high-temperature warning at 85°C and automatic shutdown at 90°C

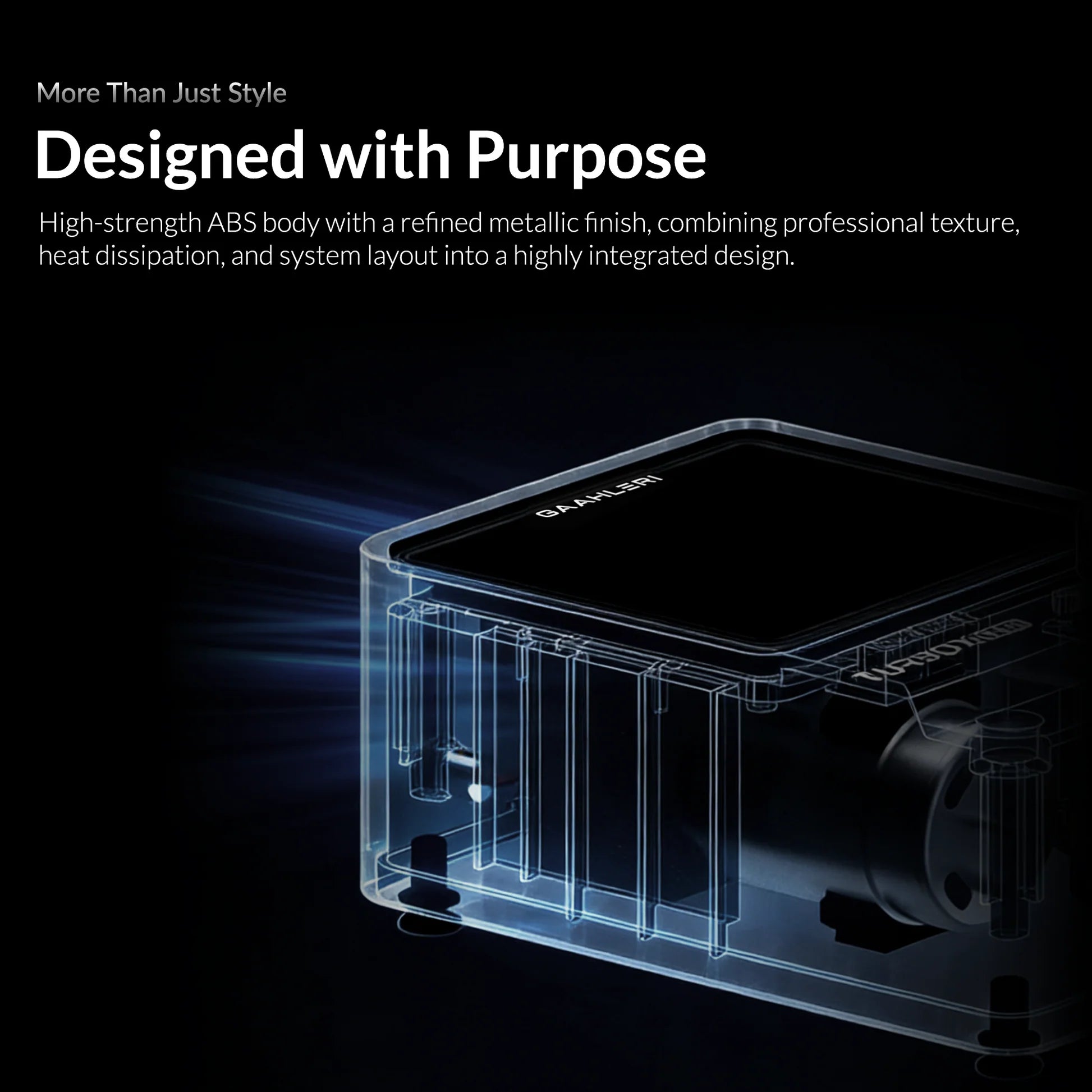

  • Gaahleri card: see-through view of the TurboX Mini ABS body with a metallic finish
  • Gaahleri card: 4mm reinforced casing and an operating noise of 48 dB or less at 1 m

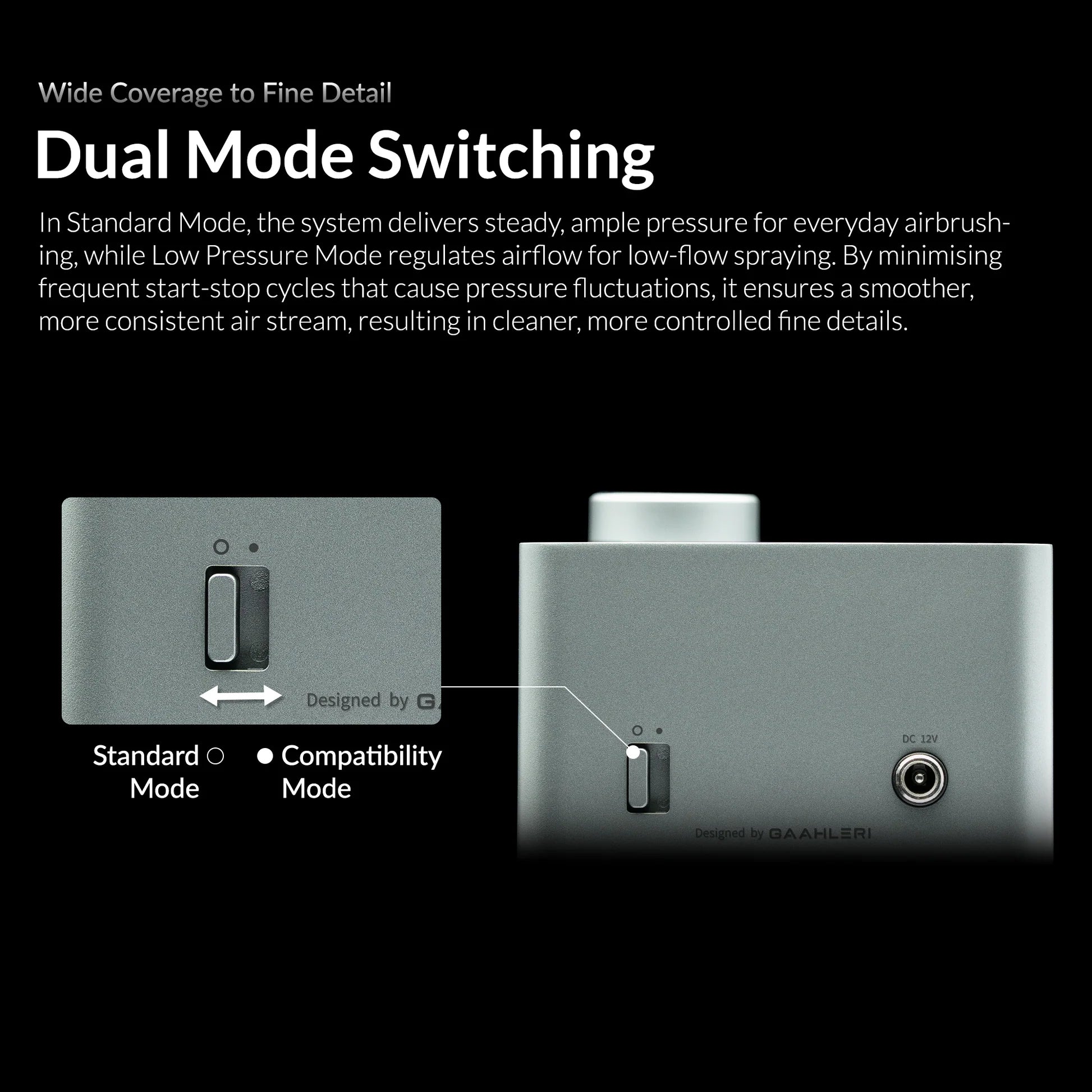

  • Gaahleri card: Standard and Compatibility mode switch beside the DC 12V input of the TurboX Mini
  • Gaahleri card: TurboX Mini uses, from Gundam, car and military models to miniatures, illustration and 3D prints

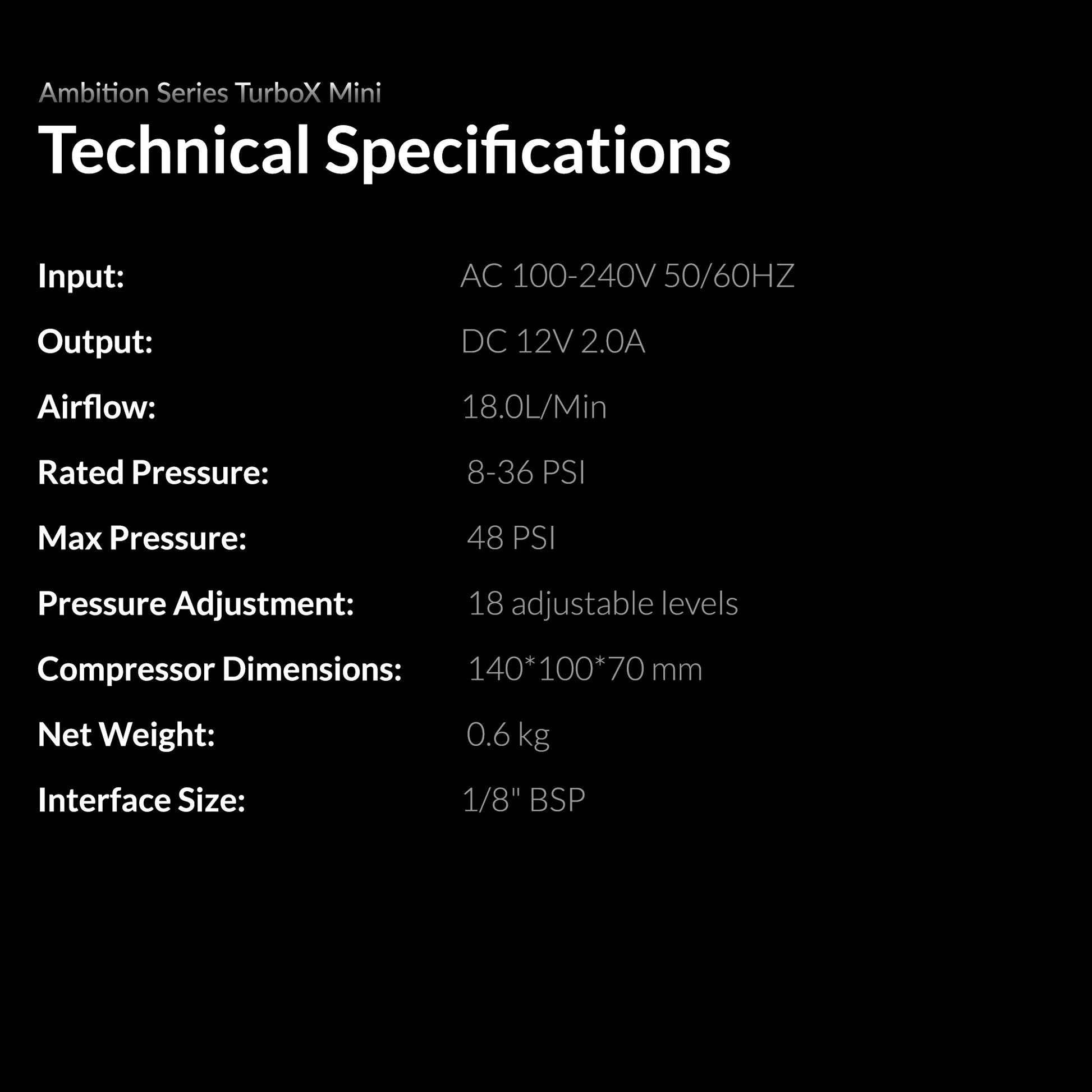

  • Gaahleri technical specifications for the TurboX Mini: power, airflow, pressures, size, weight, 1/8" BSP

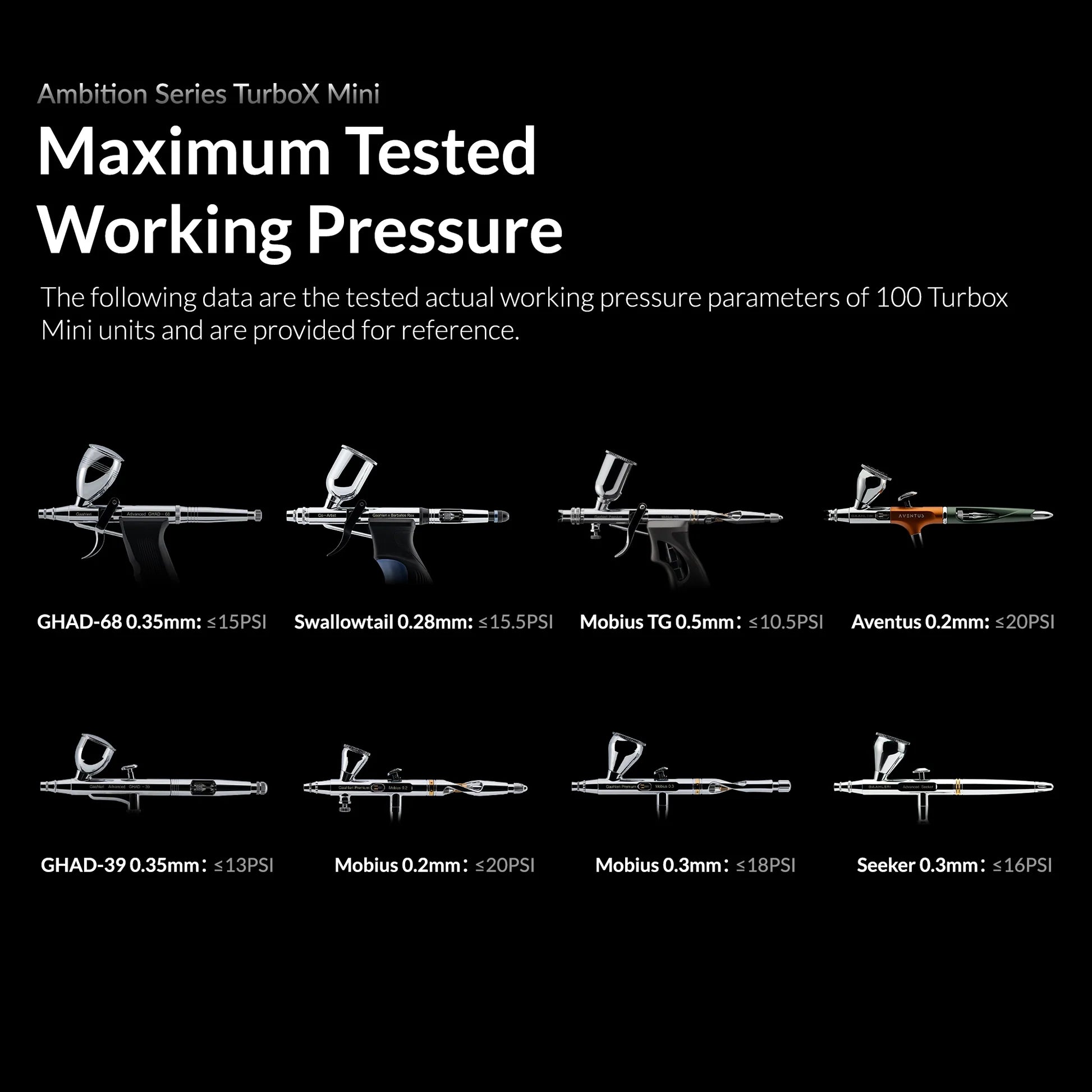

  • Gaahleri chart: tested maximum working pressure of the TurboX Mini with eight Gaahleri airbrushes

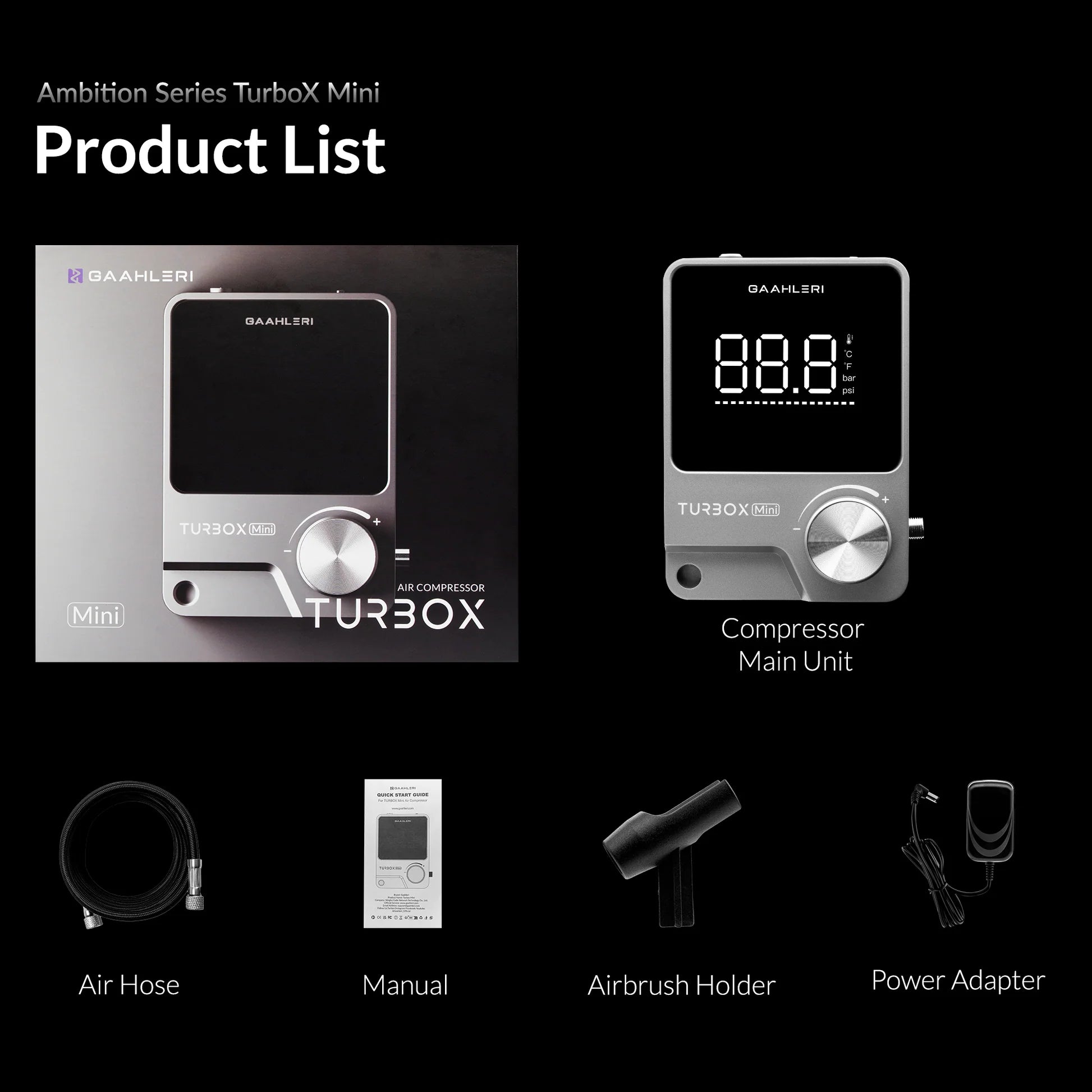

  • Gaahleri product list: TurboX Mini compressor, air hose, manual, airbrush holder and power adapter
Gaahleri TurboX Mini Air Compressor — Digital Display, 8–36 PSI 47569
Gaahleri

Gaahleri TurboX Mini Air Compressor — Digital Display, 8–36 PSI 47569

1 reviews

£47.19
£47.19
Taxes included. Shipping calculated at checkout.

Out of stock

  • Store rating 4.9/5 · 2191 reviews
  • UK tracked delivery

DWG · Product Information

PROJ: 47569 · SHEET 2 / 4

View · Overview

Product overview

Gaahleri's TurboX Mini from the Ambition Series is a desktop airbrush compressor about 14 × 10 cm across and 0.6 kg, with a digital display that reads out the current pressure, in your choice of psi or bar, next to the unit's temperature. Press the dial to step through Low, Medium and High presets, or turn it for fine adjustment over 18 levels. The rated range runs from 8 to 36 psi, and Gaahleri gives a stable working pressure of 10–20 psi depending on the airbrush. A switch on the back selects Standard mode or a low-pressure Compatibility mode that evens out the airflow for fine-detail spraying.

  • Warns at 85 °C, shuts down at 90 °C
  • 4 mm reinforced casing, 48 dB or less at 1 m
  • 18 litres per minute, 1/8" BSP outlet
  • Comes with hose, airbrush holder, adapter and manual

Notes · Q & A

What nozzle size do I need for miniatures?

0.3mm is the versatile all-rounder for base coats and priming; 0.2mm suits fine detail work. Larger nozzles (0.5mm) are for terrain and big surfaces.

Do I need a compressor with a tank?

A tank smooths the airflow and reduces pulsing, giving more consistent results — worth it if you spray regularly, but tankless compressors work fine for occasional use.

How do I keep an airbrush working well?

Flush with airbrush cleaner between colours and strip-clean after each session. Most spraying problems are cleaning problems.

Notes · Logistics

Shipping

Orders placed before 3pm (Mon–Fri) are dispatched the same day. UK delivery is by Royal Mail 24 Tracked. Free UK delivery on orders over £70. International delivery available via Royal Mail International Tracked or courier.

Returns

If you're not happy with your purchase, contact us within 30 days for a full refund or exchange. Items must be unused and in original packaging.

Table · Specification

Technical specifications

Product details
Brand
Gaahleri
Product code
47569
Type
Airbrush
Tool type
Compressor
Shipping weight
450 g
Barcode
6975834947569
Dimensions & contents
Net weight
600 g
In the box
Air hose, Airbrush holder, Power adapter, Manual
Usage & compatibility
Working pressure
10-20 psi
Thread
1/8" BSP
Air flow
18 l/min
Noise (approx.)
48 dB

Product

Gaahleri TurboX Mini Air Compressor — Digital Display, 8–36 PSI 47569

Code (proj)

47569

Ship. weight

450 g

Brand

Gaahleri

Hobby Heaven · By hobbyists, for hobbyists

Sheet 2 / 4

End of sheet
  • 5 stars: 1 (100%)
  • 4 stars: 0 (0%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
J
Jeremy Hambleton
What a Cracker

What a cracking little compressor. I would certainly recommend that it is used by trial and error before spraying anything in earnest. Once you get used to it, with the correct pressure, paint consistency and distance it’s as good as a much larger unit. I mainly use it to weather model locomotives and rolling stock and have been more than pleased with the results.
