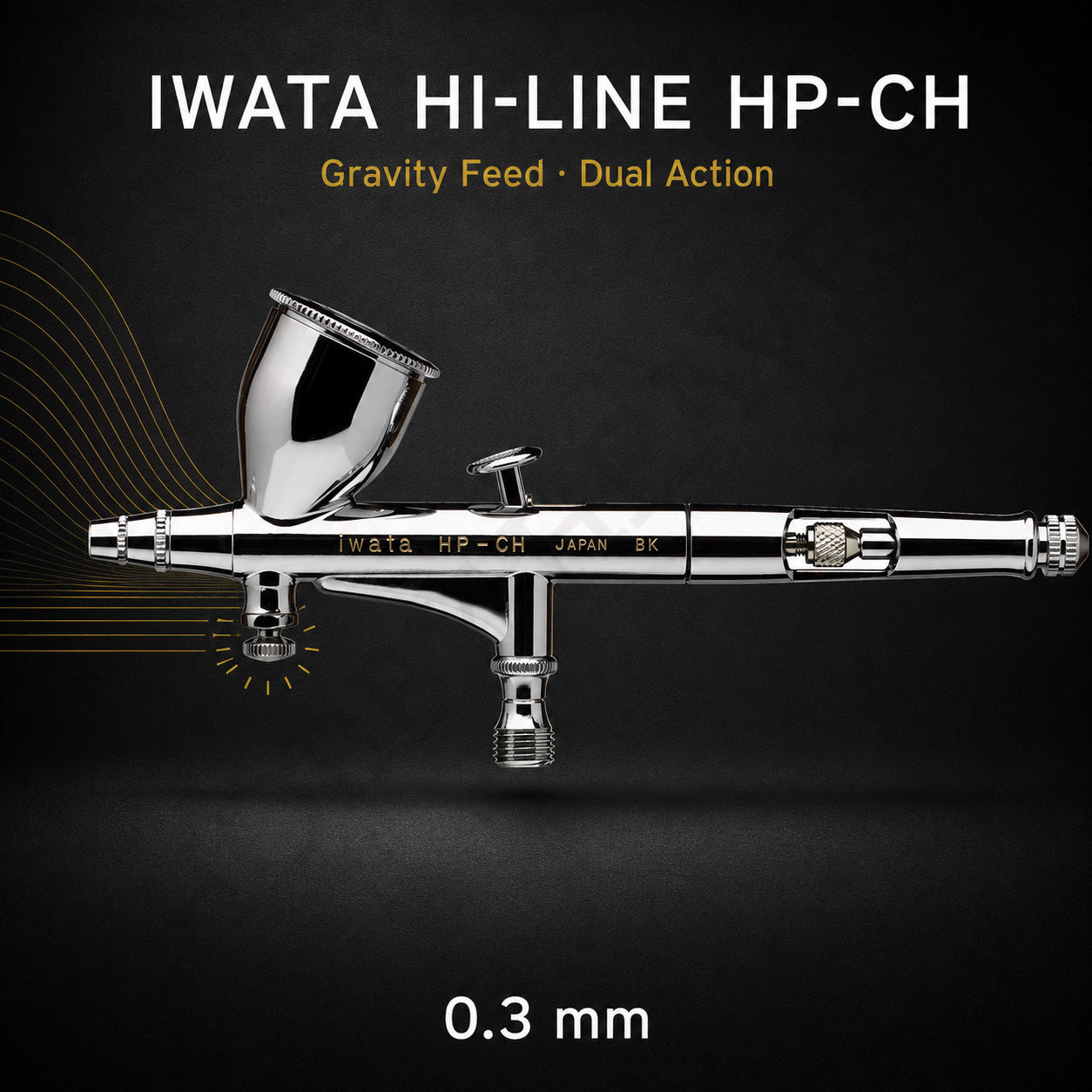

Iwata Hi-Line HP-CH airbrush side-on against black, 7 ml gravity cup uppermost, body engraved iwata HP-CH JAPAN

Iwata Hi-Line HP-CH Airbrush (IW-HP-CH) – 0.3mm Gravity-Feed Dual-Action with MAC Valve

$311.92
$311.92
Skip to product information
Iwata Hi-Line HP-CH airbrush side-on against black, 7 ml gravity cup uppermost, body engraved iwata HP-CH JAPAN
  • Iwata Hi-Line HP-CH airbrush side-on against black, 7 ml gravity cup uppermost, body engraved iwata HP-CH JAPAN

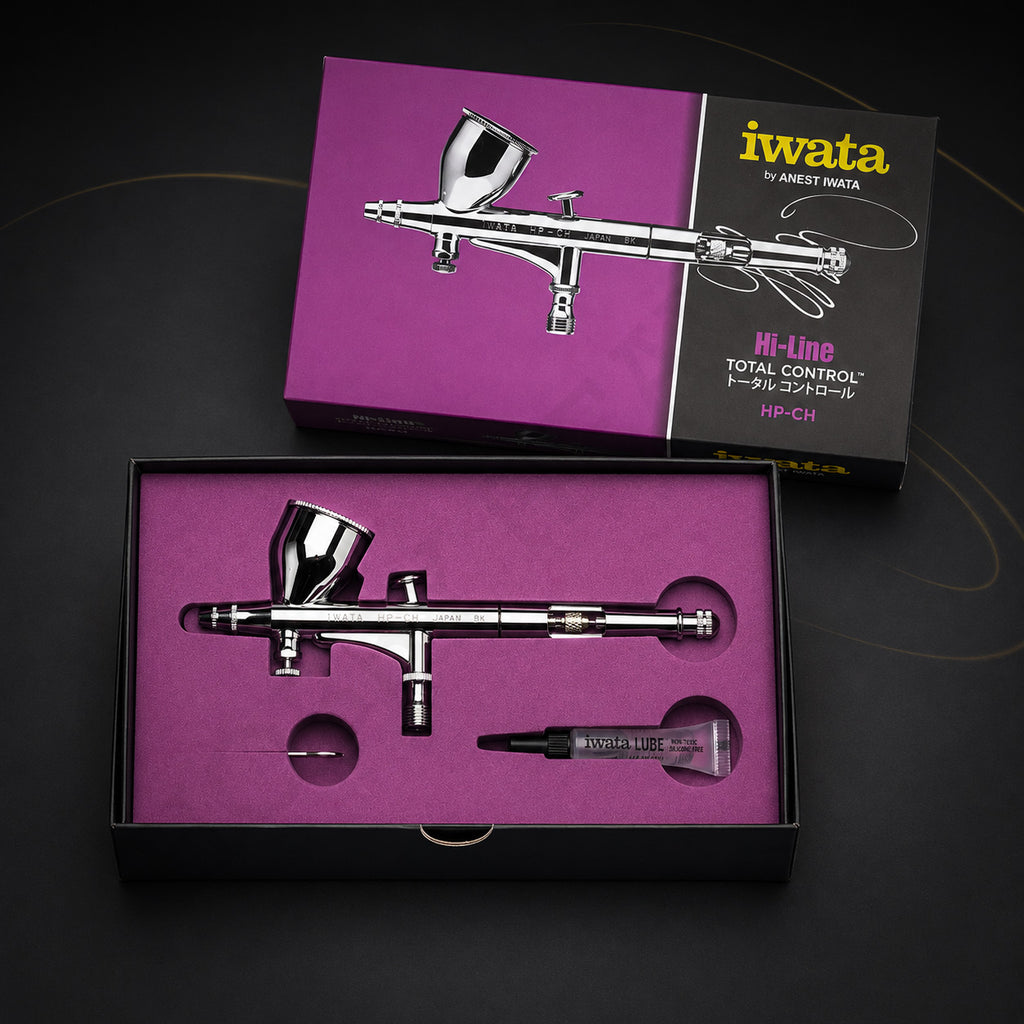

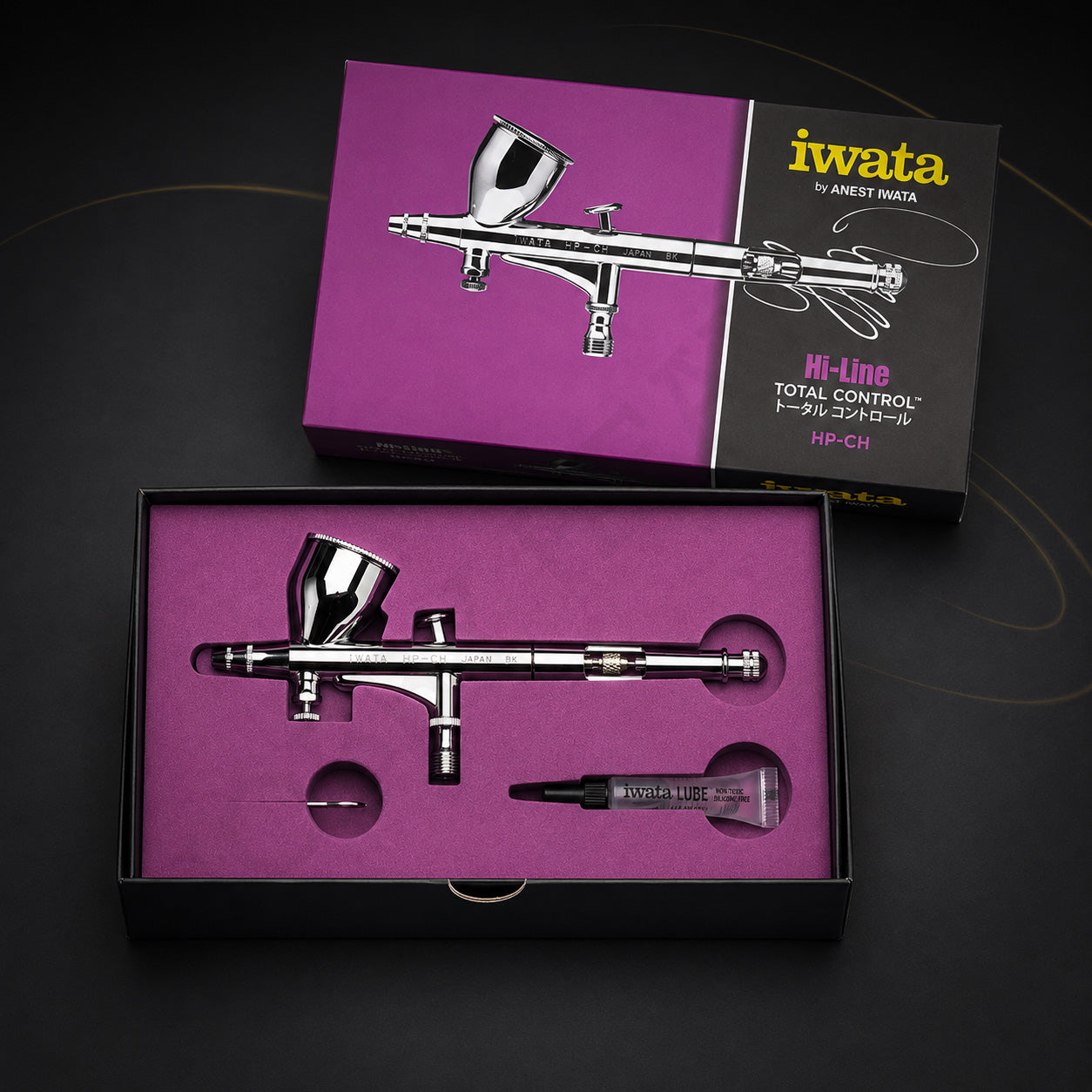

  • Iwata Hi-Line HP-CH in its open magenta presentation box with a tube of Iwata Lube and a slim metal part

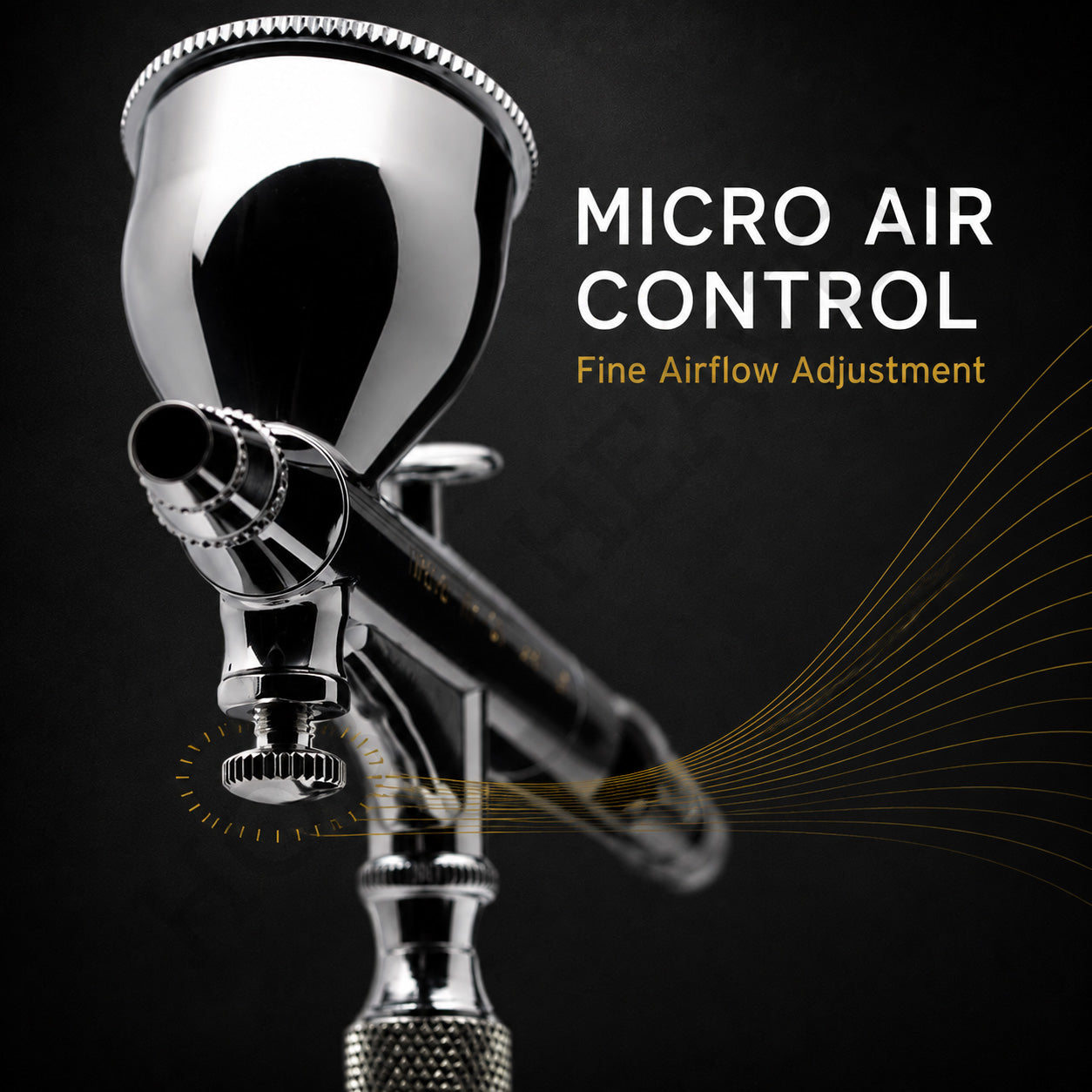

  • Close-up of the Hi-Line HP-CH Micro Air Control valve knob under the gravity cup, airflow shown as fine gold lines

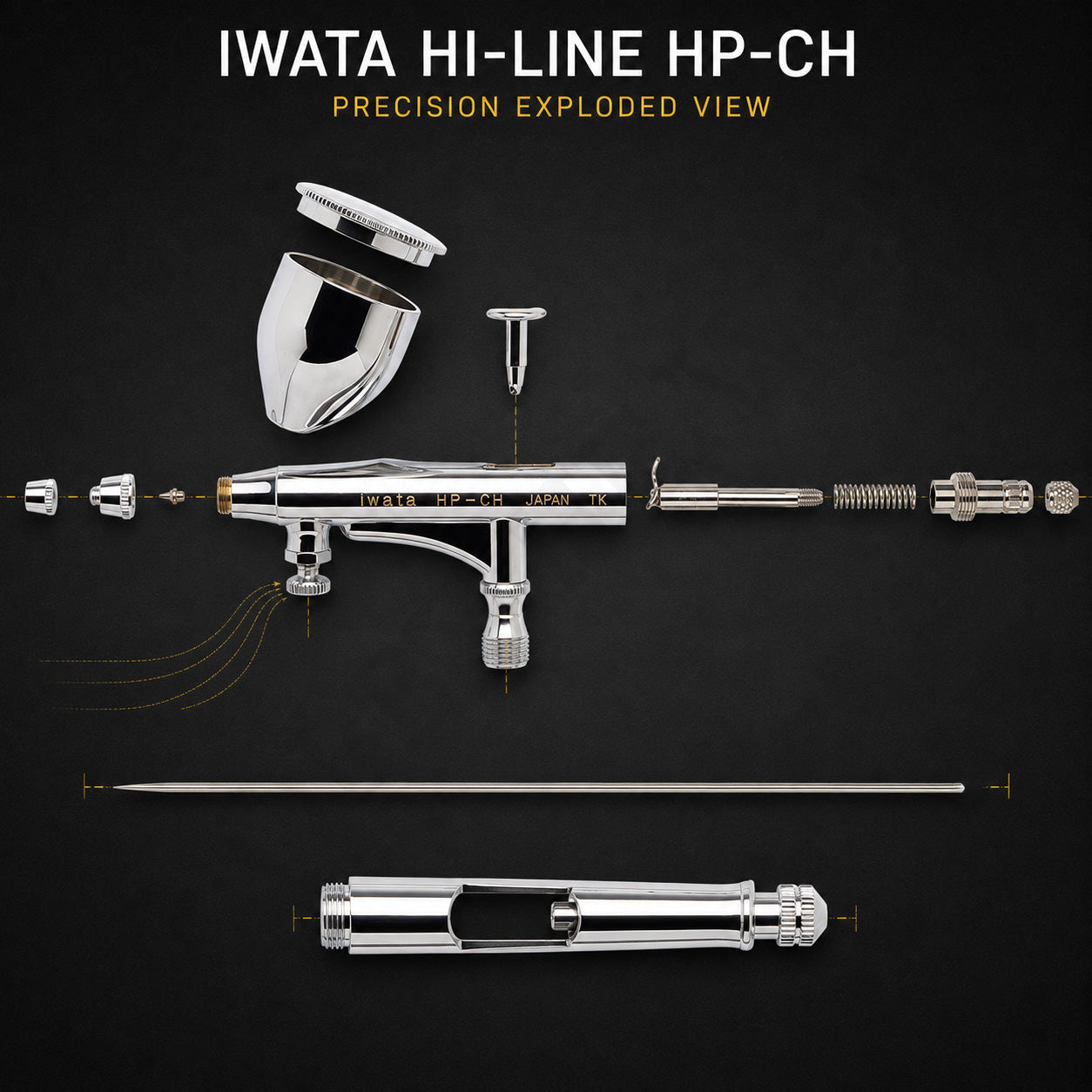

  • Exploded view of the Hi-Line HP-CH: nozzle cap, nozzle, cup and lid, needle, spring, handle and trigger parts

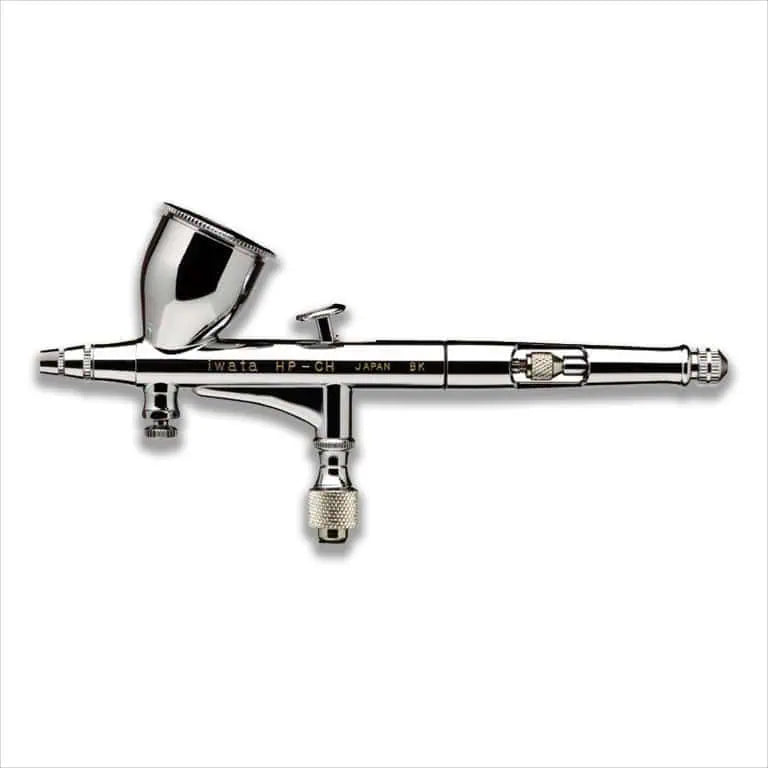

  • Iwata Hi-Line HP-CH airbrush on a plain white background, full side view with the cup lid in place
Iwata Hi-Line HP-CH Airbrush (IW-HP-CH) – 0.3mm Gravity-Feed Dual-Action with MAC Valve
Iwata

Iwata Hi-Line HP-CH Airbrush (IW-HP-CH) – 0.3mm Gravity-Feed Dual-Action with MAC Valve

$311.92
$311.92
Shipping calculated at checkout.

In stock · same-day dispatch before 3pm

  • Store rating 4.9/5 · 2166 reviews
  • UK tracked delivery
  • Dual Action
  • Gravity Feed
  • Unit
  • 0.3mm

DWG · Product Information

PROJ: IW-HP-CH · SHEET 2 / 4

View · Overview

Product overview

The Iwata Hi-Line HP-CH is a 0.3 mm gravity-feed, dual-action airbrush built for controlled fine-to-medium spraying. Its defining MAC valve lets you trim airflow at the airbrush, making small pressure changes possible without returning to the compressor. The optimal working range is 15–25 psi, while the stated 0.3–25 mm spray scale spans precise lines and broader passes. The 7 ml cup provides room for colour mixing in the airbrush.

  • The pre-set handle limits paint travel, while its cutaway gives direct needle access for quick flushing.
  • A spring-steel needle resists breakage, and PTFE packing protects paint-bearing areas against solvents.
  • The threaded H3 head combines the needle, nozzle and nozzle cap.
  • Supplied with Iwata Lube; covered by a 10-year extended UK warranty.

Notes · Q & A

What nozzle size do I need for miniatures?

0.3mm is the versatile all-rounder for base coats and priming; 0.2mm suits fine detail work. Larger nozzles (0.5mm) are for terrain and big surfaces.

Do I need a compressor with a tank?

A tank smooths the airflow and reduces pulsing, giving more consistent results — worth it if you spray regularly, but tankless compressors work fine for occasional use.

How do I keep an airbrush working well?

Flush with airbrush cleaner between colours and strip-clean after each session. Most spraying problems are cleaning problems.

Notes · Logistics

Shipping

Orders placed before 3pm (Mon–Fri) are dispatched the same day. UK delivery is by Royal Mail 24 Tracked. Free UK delivery on orders over £70. International delivery available via Royal Mail International Tracked or courier.

Returns

If you're not happy with your purchase, contact us within 30 days for a full refund or exchange. Items must be unused and in original packaging.

Table · Specification

Technical specifications

Product details
Brand
Iwata
Product code
IW-HP-CH
Type
Airbrush
Shipping weight
1000 g
Made in
Japan
Dimensions & contents
Net weight
110 g
Tool length
155 mm
Cup capacity
7 ml
In the box
Iwata Lube
Usage & compatibility
Action
Dual-action
Nozzle size
0.3 mm
Feed type
Gravity
Working pressure
15-25 psi

Product

Iwata Hi-Line HP-CH Airbrush (IW-HP-CH) – 0.3mm Gravity-Feed Dual-Action with MAC Valve

Code (proj)

IW-HP-CH

Ship. weight

1000 g

Brand

Iwata
