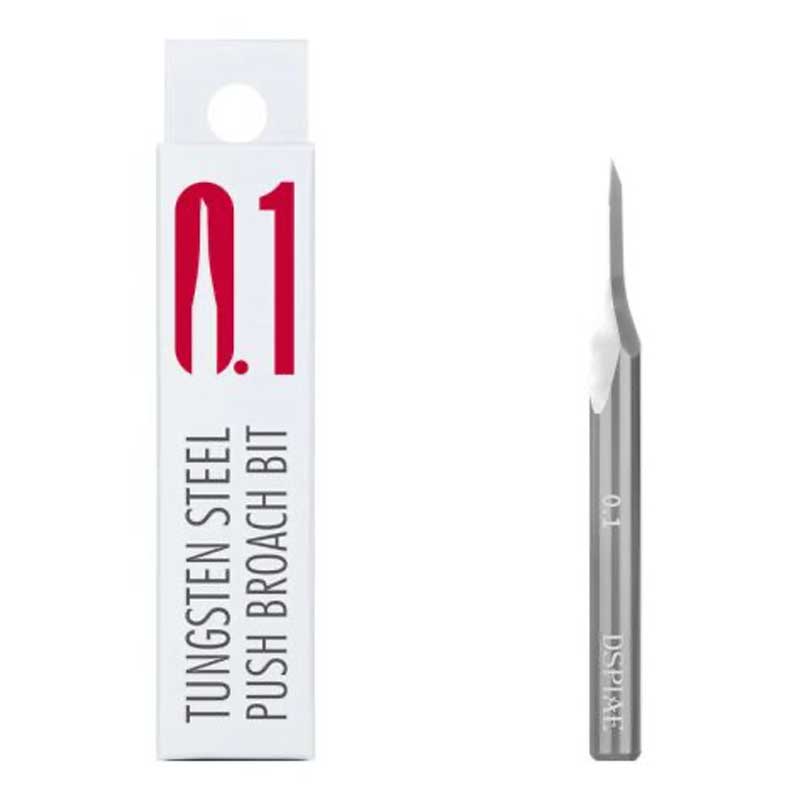

ZPB 0.1 mm push broach bit beside its retail box

DSPIAE ZPB Tungsten Steel Push Broach

0.1mm
$6.84
$6.84
Skip to product information
ZPB 0.1 mm push broach bit beside its retail box
  • ZPB 0.1 mm push broach bit beside its retail box

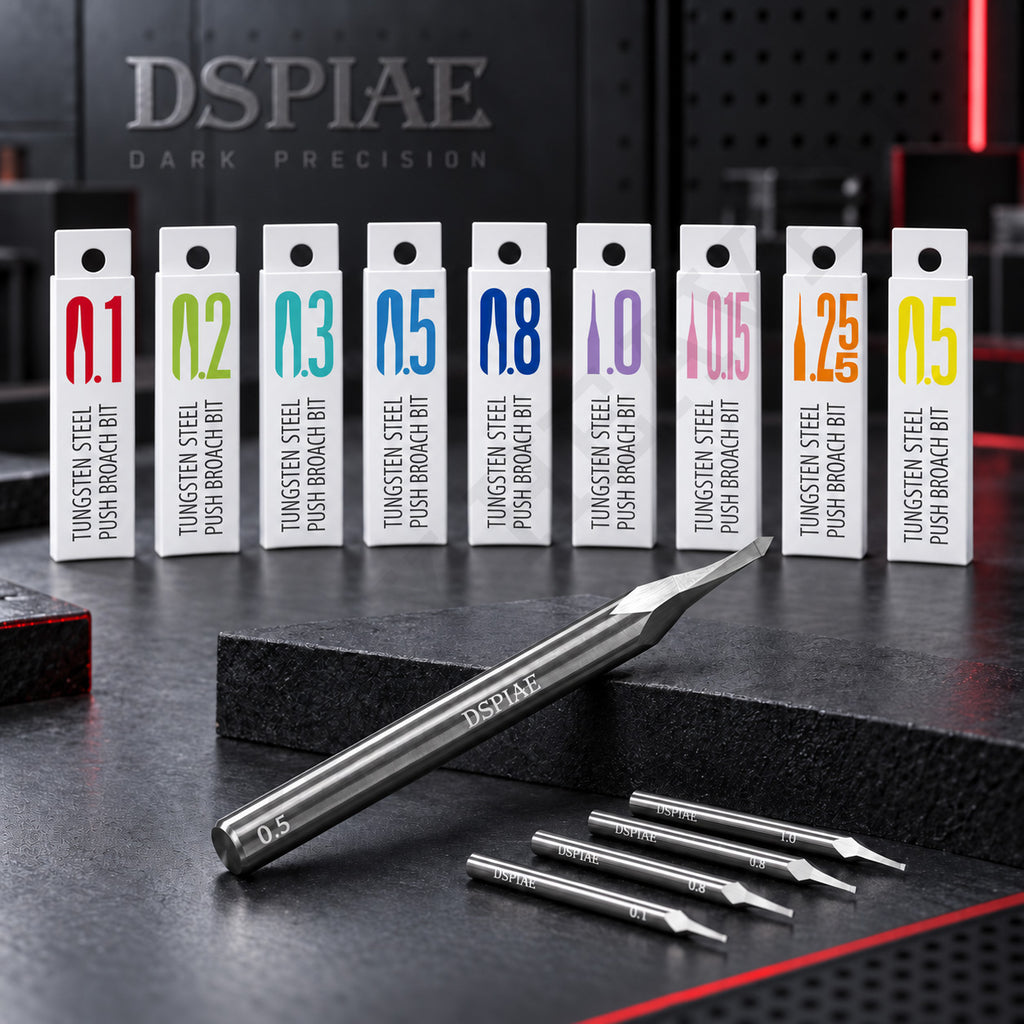

  • DSPIAE ZPB push broach bits: nine retail boxes from 0.1 to 1.5 mm and loose bits engraved with their width

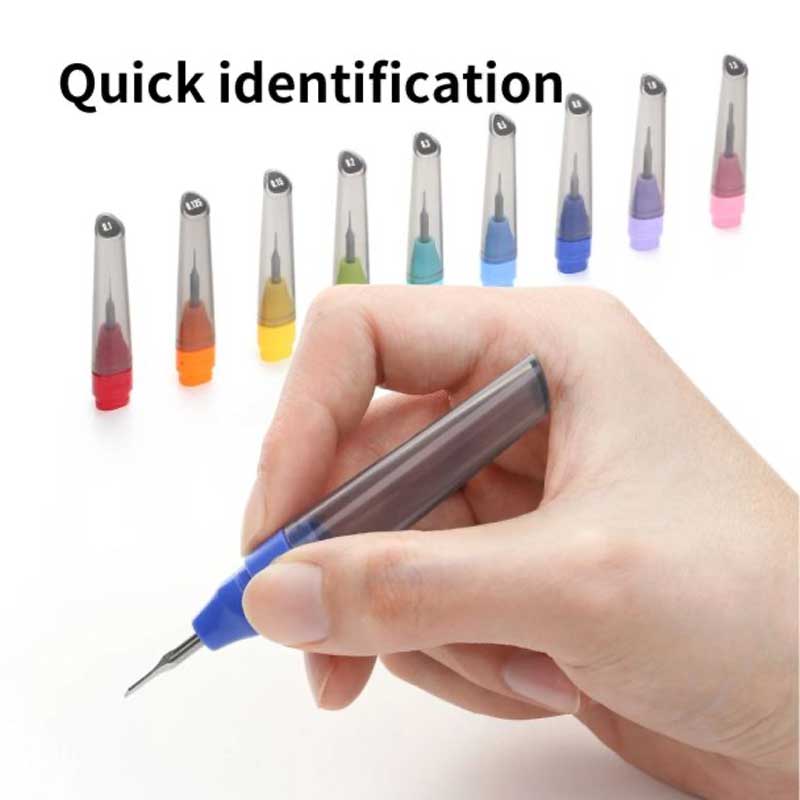

  • Maker's graphic: broach bits in coloured storage cases, one case used as a short handle to scribe

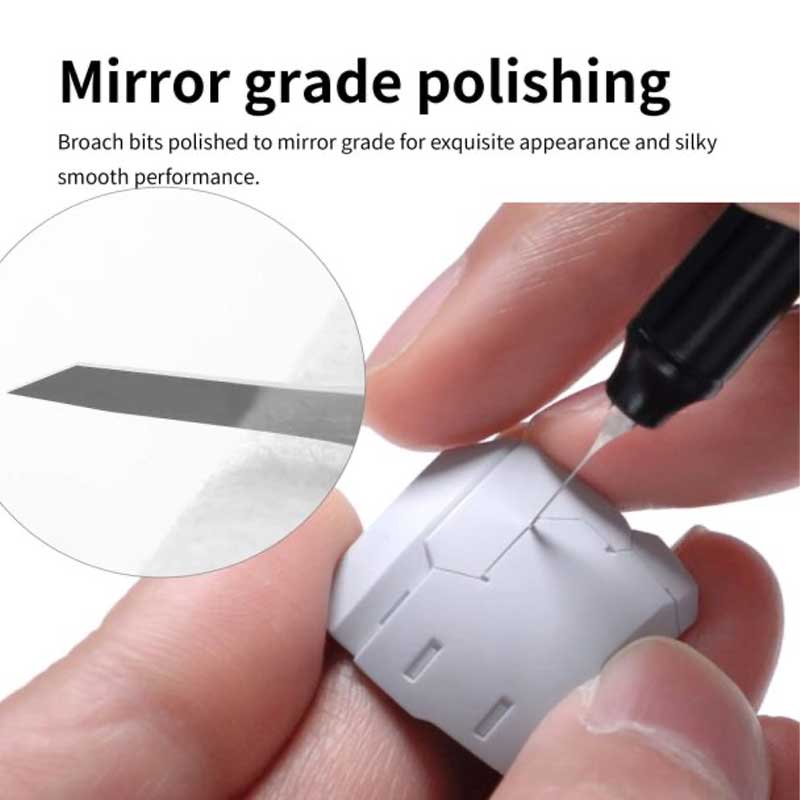

  • Maker's graphic of a broach bit's mirror-polished edge scribing a panel line on a white part

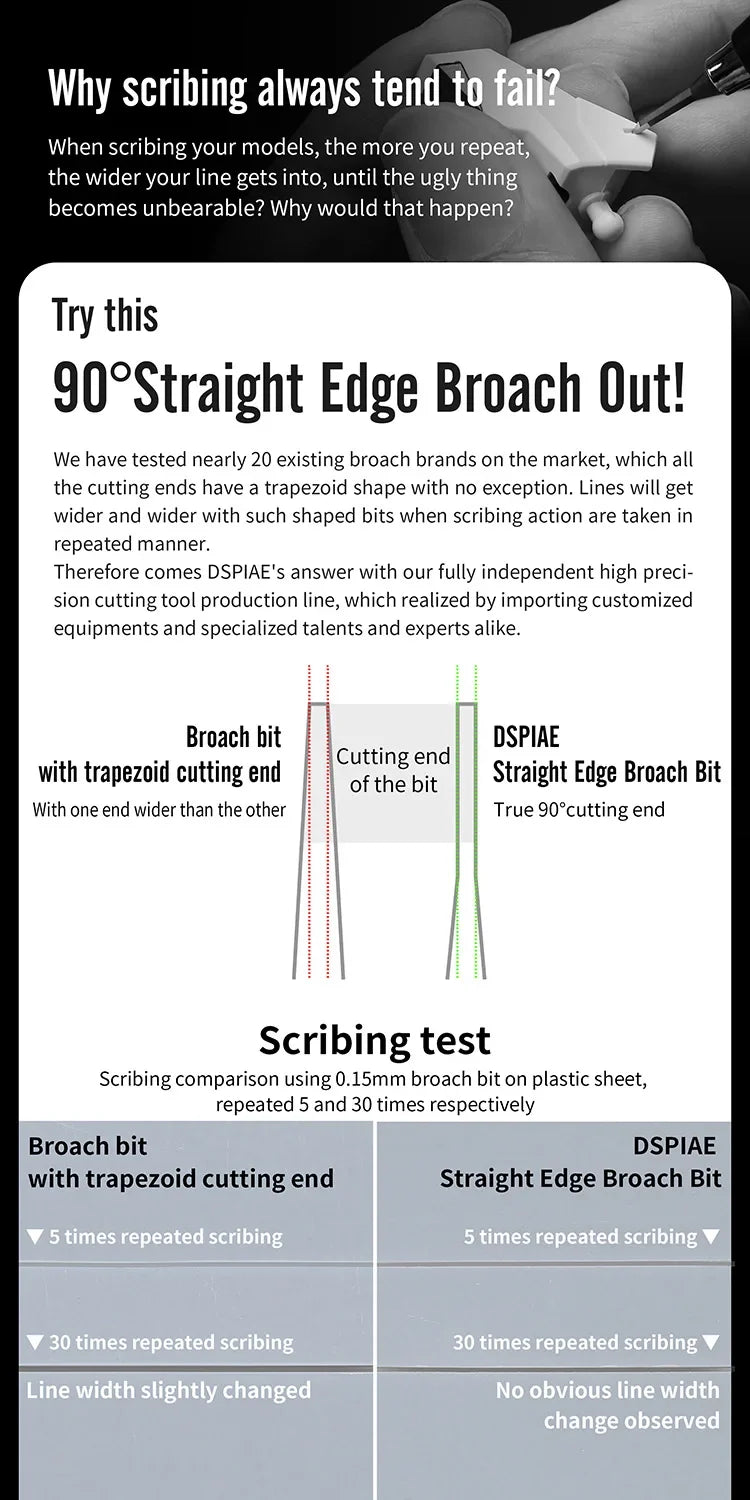

  • DSPIAE comparison of a trapezoid broach end with the ZPB's 90° straight edge, and a 0.15 mm repeated scribing test

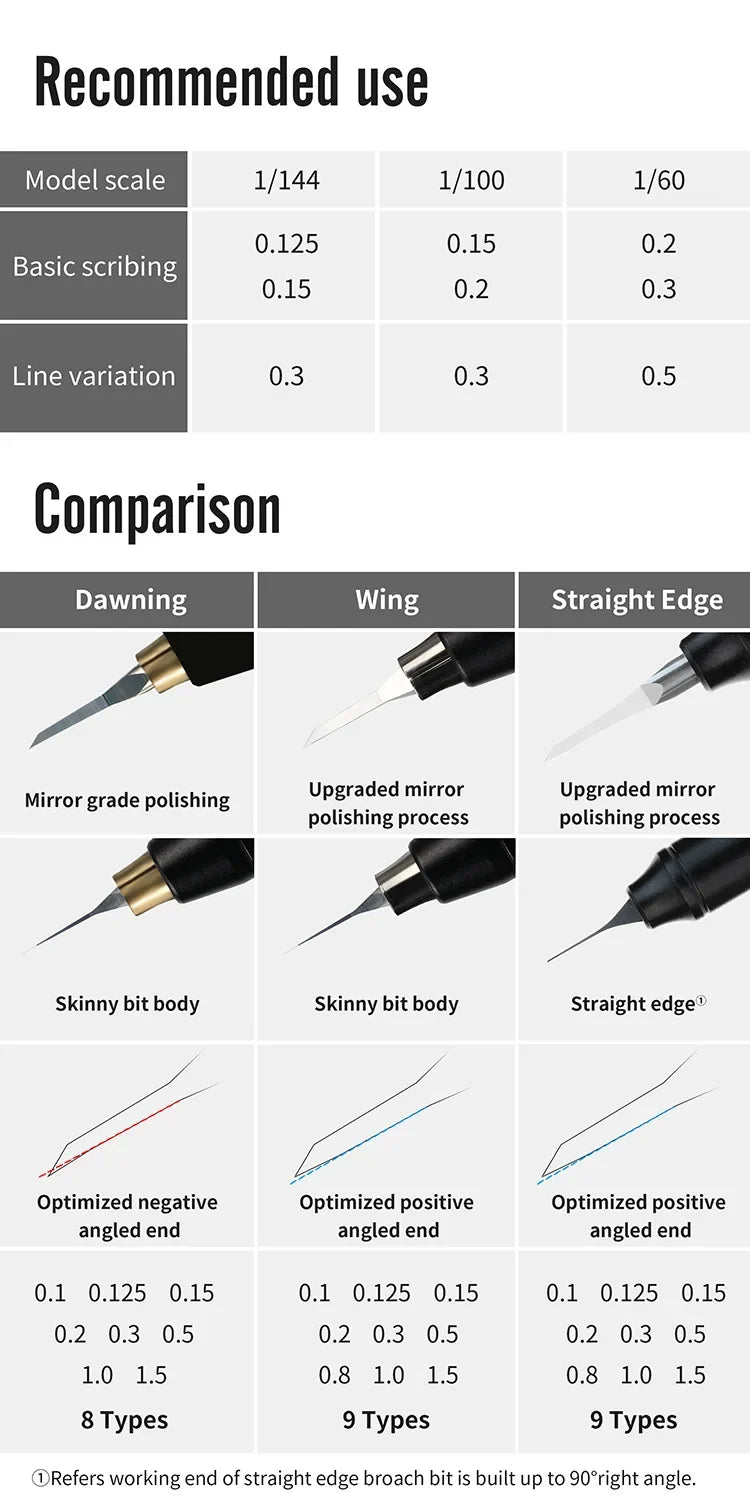

  • DSPIAE table of broach widths for 1/144, 1/100 and 1/60, and a comparison of his three broach ranges

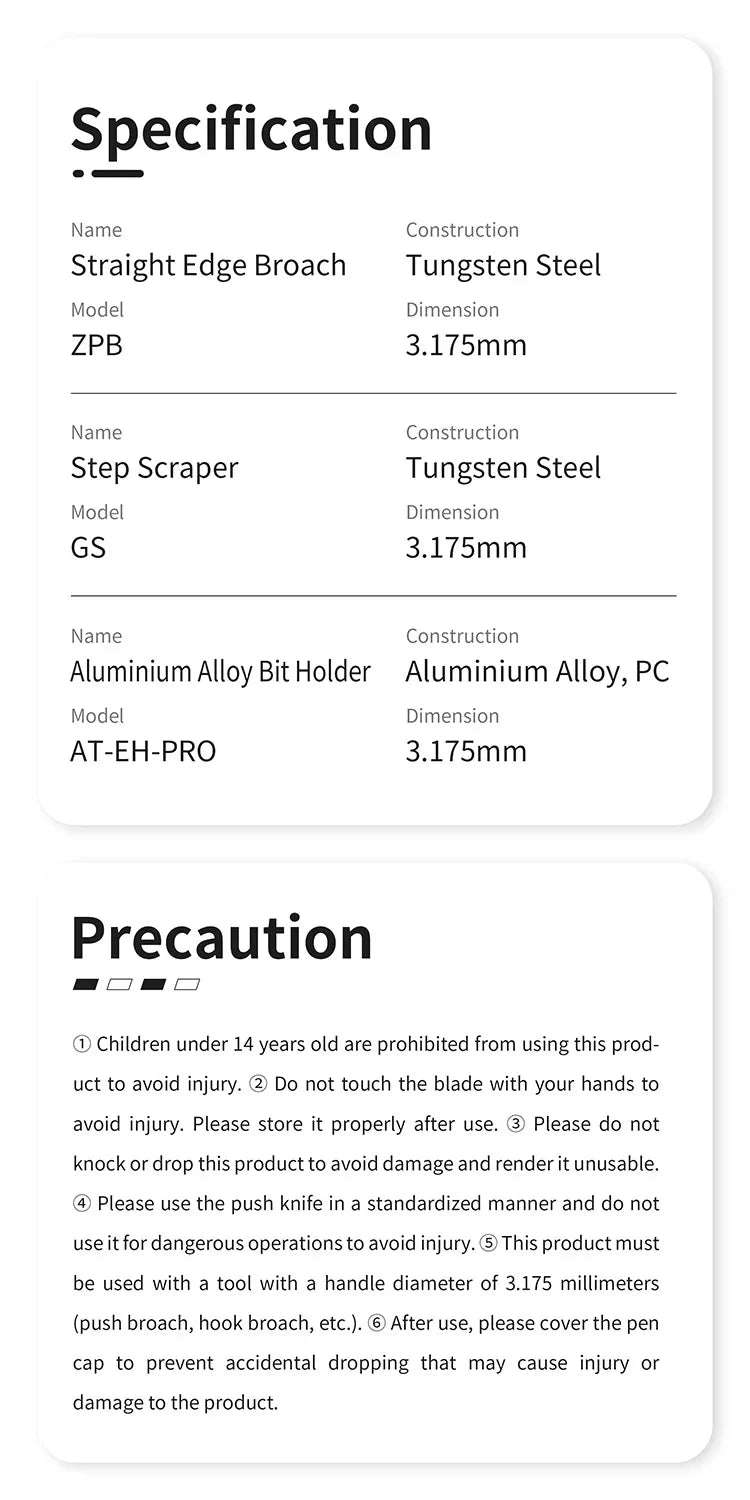

  • DSPIAE specification panel: ZPB broach and GS scraper in tungsten steel with a 3.175 mm shank, plus his holder
DSPIAE ZPB Tungsten Steel Push Broach
DSPIAE

DSPIAE ZPB Tungsten Steel Push Broach

$6.84
$6.84
Shipping calculated at checkout.
Blade Width

In stock · same-day dispatch before 3pm

  • Store rating 4.9/5 · 2192 reviews
  • UK tracked delivery

DWG · Product Information

PROJ: ZPB-01 · SHEET 2 / 4

View · Overview

Product overview

DSPIAE ZPB push broach bits are tungsten steel bits for scribing panel lines into ABS, PS, PE, resin and 3D printed parts. Most broach bits have a trapezoid cutting end, so the line widens each time you go over it. The ZPB is ground to a true 90° straight edge, so repeated passes keep the line the same width. Tolerance is under 0.003 mm; the bits are mirror polished and the edge treated against chipping. Each bit comes in a coloured storage case that doubles as a short handle; for longer work, fit it in a 3.175 mm holder, sold separately.

  • DSPIAE's guide for panel lines: 0.125–0.15 mm at 1/144, 0.15–0.2 mm at 1/100, 0.2–0.3 mm at 1/60
  • Shank diameter 3.175 mm
  • Holder not included

Notes · Q & A

Sprue cutters or a hobby knife — what do I actually need?

Cutters remove parts from the sprue cleanly; the knife trims the leftover nub and mould lines. You'll want both — they do different jobs.

What's the difference between single-blade and double-blade cutters?

Single-blade cutters shear against a flat anvil for an ultra-clean cut with less stress on the plastic; double-blade cutters are tougher for general work.

How do I keep tools in good condition?

Cut plastic only (never metal sprues or wire) with precision cutters, replace knife blades often, and keep files clear with a brass brush.

Notes · Logistics

Shipping

Orders placed before 3pm (Mon–Fri) are dispatched the same day. UK delivery is by Royal Mail 24 Tracked. Free UK delivery on orders over £70. International delivery available via Royal Mail International Tracked or courier.

Returns

If you're not happy with your purchase, contact us within 30 days for a full refund or exchange. Items must be unused and in original packaging.

Table · Specification

Technical specifications

Product details
Brand
DSPIAE
Product code
ZPB-01
Type
Tools
Tool type
Push broach bit
Shipping weight
100 g
Barcode
6977151546913
Dimensions & contents
Shank diameter
3.175 mm
In the box
Coloured storage case ×1
Materials & finish
Blade
90° straight edge
Material
Tungsten steel
Usage & compatibility
Scale
1/144, 1/100, 1/60

Product

DSPIAE ZPB Tungsten Steel Push Broach

Code (proj)

ZPB-01

Ship. weight

100 g

Brand

DSPIAE
